WD181PURP Technical Specifications

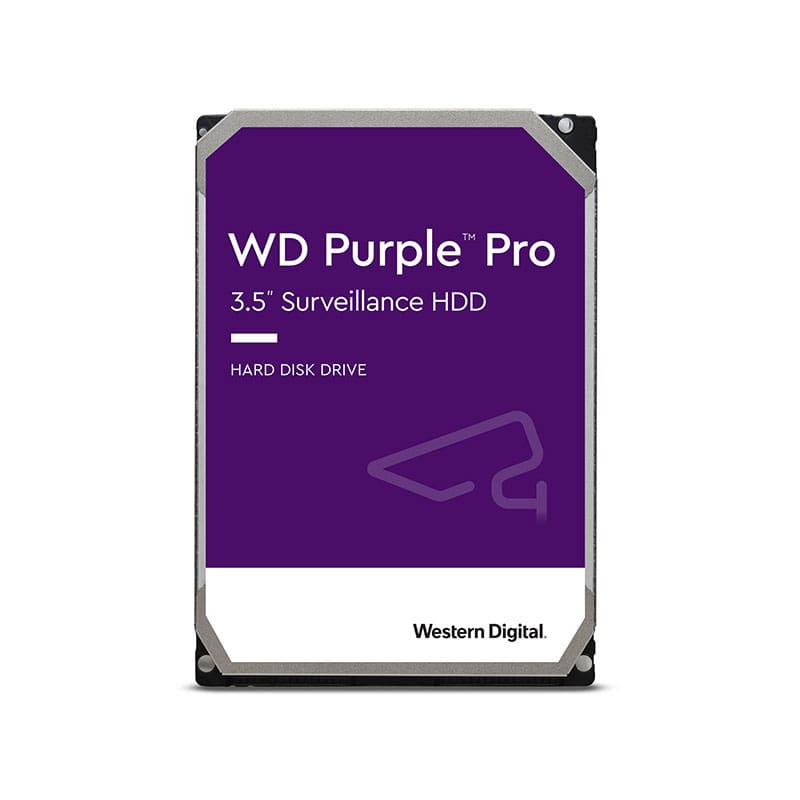

WD Purple Pro Hard Drive 18TB SATA 6Gb/s
Brand WD
Product Line WD Purple Pro
Model WD181PURP
Manufacturer Western Digital
Storage
Buffer Size 512 megabyte
Data Transfer Rate (Hard Drive) 600 MBps
Form Factor (Short) 3.5″
Form Factor (Short) (metric) 8.9 cm
Hard Drive Capacity 18 TB
Hard Drive Features
24×7 continuous operation, Advanced Format technology, All Frame AI, Conventional magnetic recording (CMR), Support up to 64 cameras, Tarnish-resistant
Hard Drive Type
Internal hard drive
HD Interface
Serial ATA-600
Load/Unload Cycles 600,000
Max Internal Data Transfer Rate 272 MBps
Non-Recoverable Errors
1 per 10^15
Spindle Speed (rpm)
7200 revolutions per minute
Storage Interface
Serial ATA-600
24×7 Operation
Yes
Connectivity
Interface Provided
1 x SATA 6 Gb/s
Power
Power Consumption
0.9 Watt (sleep), 0.9 Watt (standby), 5.9 Watt (idle), 6.3 Watt (read/write)
Technical Information
Compatible Bay 3.5″
Hard Drive Form Factor 3.5″
Hard Drive Form Factor (metric) 8.9 cm
Max Operating Temperature 149 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
MTBF 2,500,000 Hours
Shock Acceleration (Non-operating) 250 gram
Shock Acceleration (Operating) 50 gram
Shock Duration (Non-operating) 2 ms
Shock Duration (Operating) 2 ms
Product Information
Packaged Quantity 1
Product Type Hard drive
Dimensions & Weight
Height 1 inch
Weight 24.34 ounce
Width 4 inch
Depth 5.8 inch
