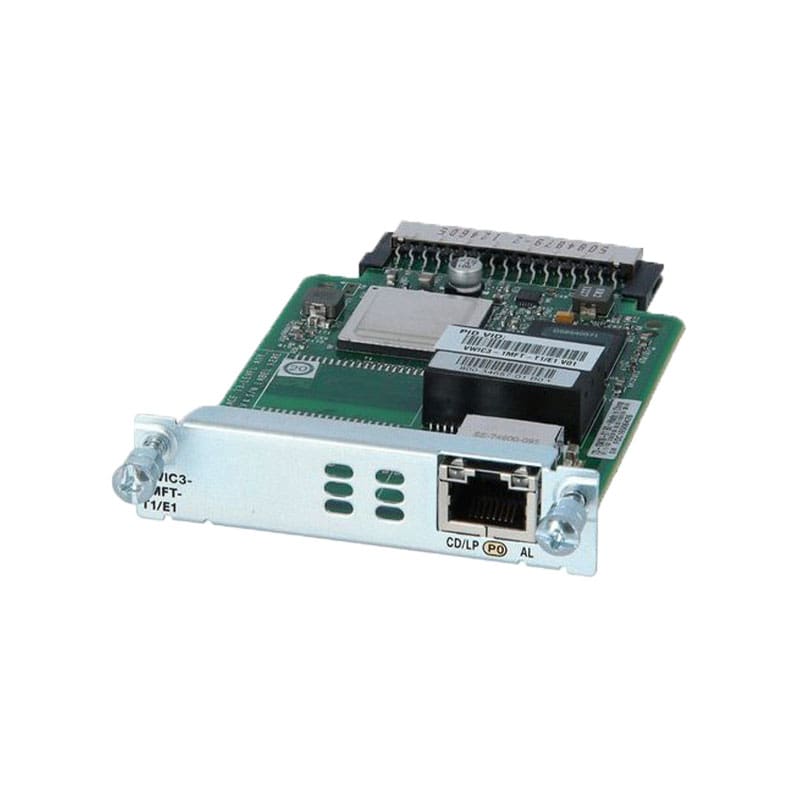

VWIC3-2MFT-T1/E1 Technical Specification
Cisco 2 Ports WAN Interface Card
Manufacturer: Cisco
Brand: Cisco
Type: Networking
Product Type: WAN Module
Key Feature
Module Type: Voice WAN Interface Card (VWIC)
Form Factor: Plug-in module
Interface (Bus) Type: EHWIC
Ports & Connectivity
Total Number of Ports: 2
Interfaces/Ports Details: 2 x T1/E1 WAN
Media Type Supported: Twisted Pair
Network Technology: T1, E1
Maximum Data Transfer Rate: 2.048 MBPS
Connectivity Technology: Wired
Line Rate: T-1/E-1
Line Coding Format: AMI, B8ZS, HDB3
Status Indicators: Carrier detect, alarm, loop
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 – 85% (non-condensing)
