VCG16504SSFPPB Technical Specifications

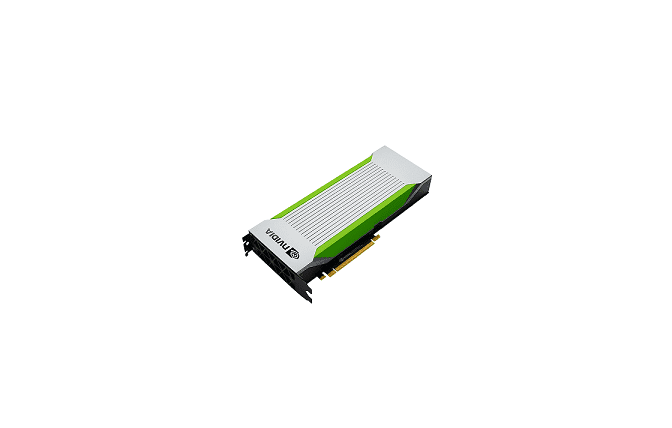

NVIDIA Quadro RTX 8000 Passive Graphics Card Quadro RTX 8000 48 GB
Header
Manufacturer :Pny Electronics
Brand :NVIDIA
Product Line :NVIDIA Quadro
Model :RTX 8000 Passive
Packaged Quantity :1
Video Output
Type :Graphics card
Interface Type :PCI Express 3.0 x16
Graphics Processor Manufacturer :NVIDIA
Graphics Processor :NVIDIA Quadro RTX 8000
CUDA Cores Qty :4608
API Supported :DirectCompute, Vulkan, DirectX 12, OpenGL 4.5, OpenCL
Video Adapter Features :Motion adaptive shading, Error Correcting Codes (ECC) Memory, Nvidia CUDA technology, NVIDIA NVLink technology, Multi-view rendering (MVR), Real-Time Ray Tracing, Nvidia SLI FSAA (Full Scene Anti Aliasing), 32-bit per-component floating point texture filtering and blending, Multi-stream hardware H.264 encoder, Nvidia DLSS, Dynamic Parallelism, 32K Texture and Render Processing, 72 NVIDIA RT Cores, 576 NVIDIA Tensor Cores, Texture space shading, NVIDIA Turing GPU architecture, NVIDIA Mosaic, GPU Tessellation, Nvidia Unified Memory Architecture, 10 Giga Rays/Sec cast, 64x full scene antialiasing, Nvidia Scalable Geometry Engine, Hardware Video Decode Acceleration, Transparent multisampling, Nvidia nVIEW Multi-Display Technology, Shader Model 5.1, 16x angle independent anisotropic texture filtering, Variable rate shading (VRS), NVIDIA GPU Boost, NVIDIA GigaThread engine
Video Memory
Technology :GDDR6 SDRAM
Installed Size :48 GB, 48 GB, 48 GB, 48 GB
Bus Width :384-bit
Bandwidth :672 GBps, 624 GBps
Power Device
Power Consumption Operational :250 watt
System Requirements
OS Required :Microsoft Windows Server 2012 R2 (64-bit), Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux (64-bit), Microsoft Windows Server 2008 R2 (64-bits)
Miscellaneous
Color Category :Black, Gray, Green
