UXG-PRO-US Technical Specifications

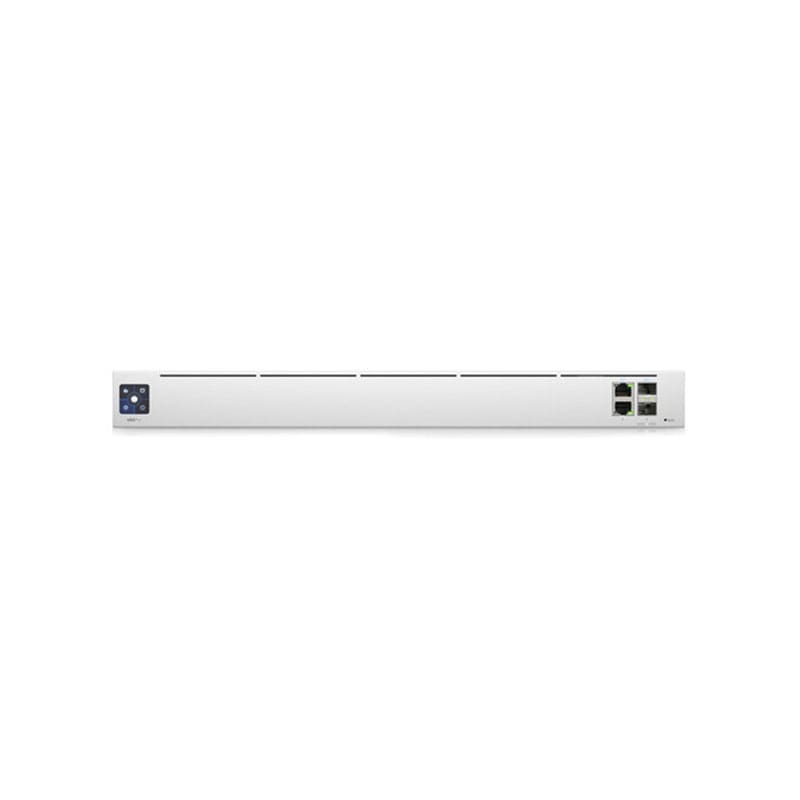

Ubiquiti UniFi Next-generation Gateway Pro Security appliance
Brand Ubiquiti
Product Line Ubiquiti UniFi
Model Next-generation Gateway Pro
Manufacturer
Ubiquiti
Processor
Clock Speed 1.7 GHZ
Processor Brand ARM
Processor Number A57
Processors Installed 1
Total Processor Supported 1
Memory
Memory Technology DDR4 SDRAM
RAM Installed 2 GB
Network & Communication
Connectivity Technology
Wired
Data Link Protocols
10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Features
15KV ESD Protector (air-gap discharge), 8KV ESD Protector (contact discharge), Deep Packet Inspection (DPI), Intrusion Detection System (IDS), Intrusion Prevention System (IPS)
Form Factor
Rack-mountable
Product Type
Security appliance
Status Indicators
LAN, SFP+
Connectivity
Interface Provided
1 x 1000Base-T – RJ-45 (WAN), 1 x 10Gb Ethernet – RJ-45, 1 x 10Gb Ethernet – SFP+ (WAN), 1 x Ethernet 1000 – RJ-45
Power
Power Consumption Operational
30 watt
Technical Information
Built-in Devices
1.3″ touch screen display
Max Operating Temperature
104 degree Fahrenheit
Min Operating Temperature
14 degree Fahrenheit
Operating Humidity
5 – 95% (non-condensing)
Product Information
Country
United States
Device Type
Internal power supply
Packaged Quantity 1
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 7.54 lbs
Width 17.4 inch
Depth 11.2 inch
