USW-24-POE Technical Specifications

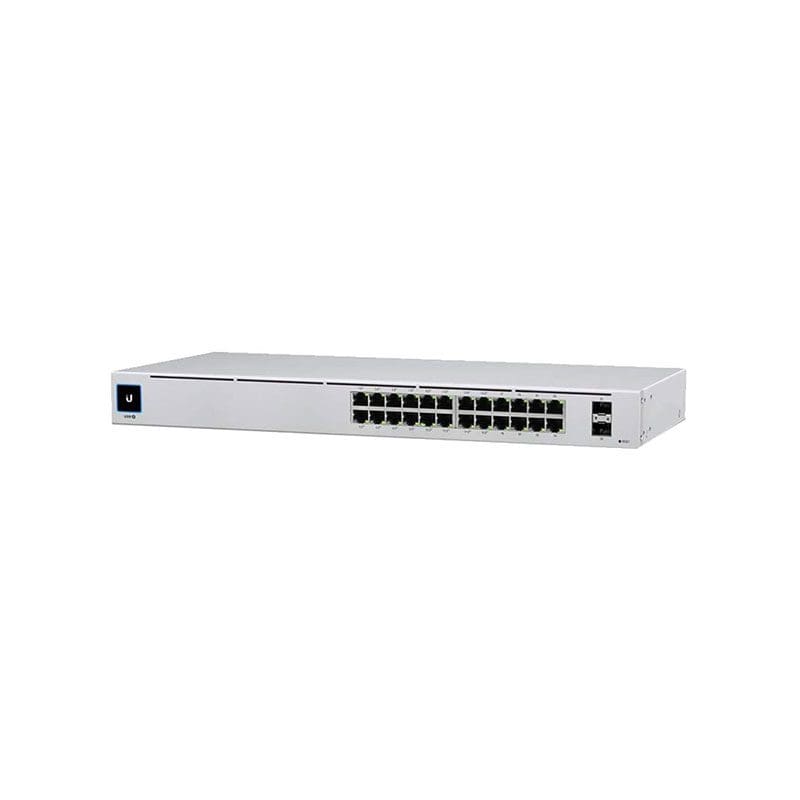

Ubiquiti Networks UniFi 24-Port Managed Gigabit PoE Switch with SFP
Brand Ubiquiti
Model USW-24-POE
Format & Standards
Format Rackmount
Network Management Type Unmanaged
Ports & Interface
Primary Ports 24 x RJ45 + 2 x SFP
Primary Port Speed 10/100/1000Mbps + 1000Mbps
Details
PoE POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)
LEDs Status; PoE; Speed/Link/Activity; Link/Activity
Power 100-240VAC/50-60 Hz, Universal Input
Features
Features (24) Gigabit Ethernet Ports including (16) 802.3at PoE+
(2) 1G SFP Ports
1.3″ touch LCM
Managed by UniFi Controller
120W Power supply
Dimensions & Weight
Dimensions 16.71″ x 7.87″ x 1.72″
Weight Weight: 3.00 kg (6.61 lbs.)
With Rackmount Brackets: 3.09 kg (6.81 lbs.)
Environmental
Temperature 10 to 90% Noncondensing
Humidity -5 to 40°C (23 to 104°F)
