UNVR Technical Specification

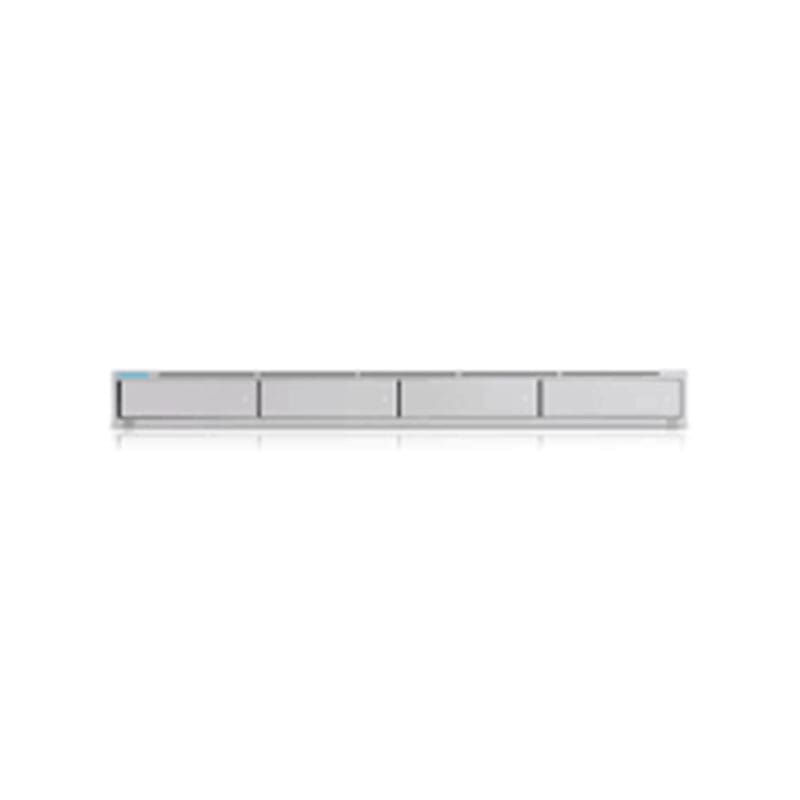

Ubiquiti 10G SFP+Port GbE RJ45 Port UniFi Network Protect Video Recorder Pro
Manufacturer: Ubiquiti
Brand: Ubiquiti
Playback Resolution : 1080p, 4K
Recording Resolution : 4K, 1080p
IP Camera Support : 50
Communication I/O : 1x RJ45 Gigabit Ethernet, 1x SFP+
Audio I/O : No
Wi-Fi : No
Bluetooth: No
CPU :Quad-Core: Up to 1.7 GHz Cortex A57
Memory : 4 GB DDR4
Flash Memory : 32 GB
Installed Drive : No
Initial RAID Configuration: RAID 5
Max Capacity Supported : 8 TB (Each Drive), 32 TB (Total)
Number of Bays : 4x 2.5″/3.5″ Internal
RAID Support : , RAID 1/5
Fisheye Dewarping: No
Power Consumption : 100 W (Maximum)
Power Supply Type : External
Input Power : 100 to 240 VAC, 50 / 60 Hz at 2 A
Operating Temperature : 23 to 104°F / -5 to 40°C
Operating Humidity : 5 to 95%
Built-In Display : No
Certifications : CE
LED Indicators : Yes
Rack Form Factor : 1 RU
Dimensions (W x D x H) : 17.4 x 12.8 x 1.7″ / 442.0 x 325.1 x 43.2 mm
Weight : 11.27 lb / 5.11 k
