UGT-M2PC300R Technical Specifications

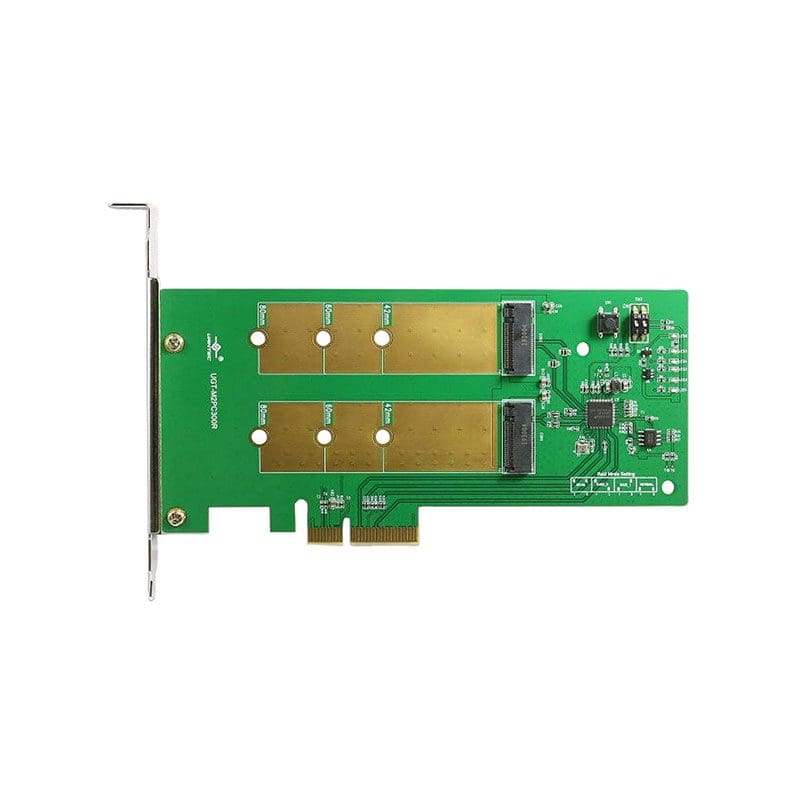

Vantec Dual M.2 SSD RAID PCIe X4 Host Card
Brand : Vantec
Manufacturer Part Number : UGT-M2PC300R
Details
Product Type : Raid Network Card
External Ports 2 x M.2 SSD interface with B Key only, NOT for NVMe
Internal Ports 1 x PCIe x4
Available system board PCIe x4 or x8 or x16 slot
Compatibility M.2 interfaces: 2 x M.2 SSD interface with B Key only, NOT for NVMe
M.2 Size: Length support 22×42, 22×60, or 22x80mm
Specifications RAID Mode: RAID 0, 1, SPAN, Individual
PCIe Connector: PCIe x4 or better (x8 or x16)
PCIe Power: PCIe Bus powered (3.3V)
Features
Features Support Dual M.2 (2242, 2260, or 2280) SSD for RAID or individual Function
