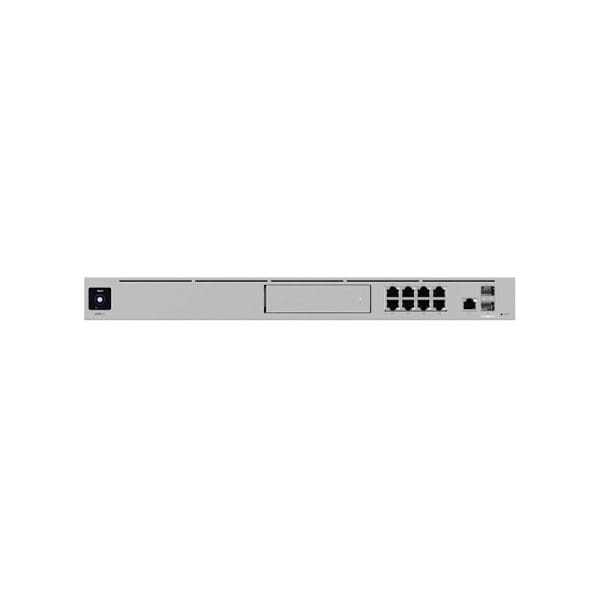

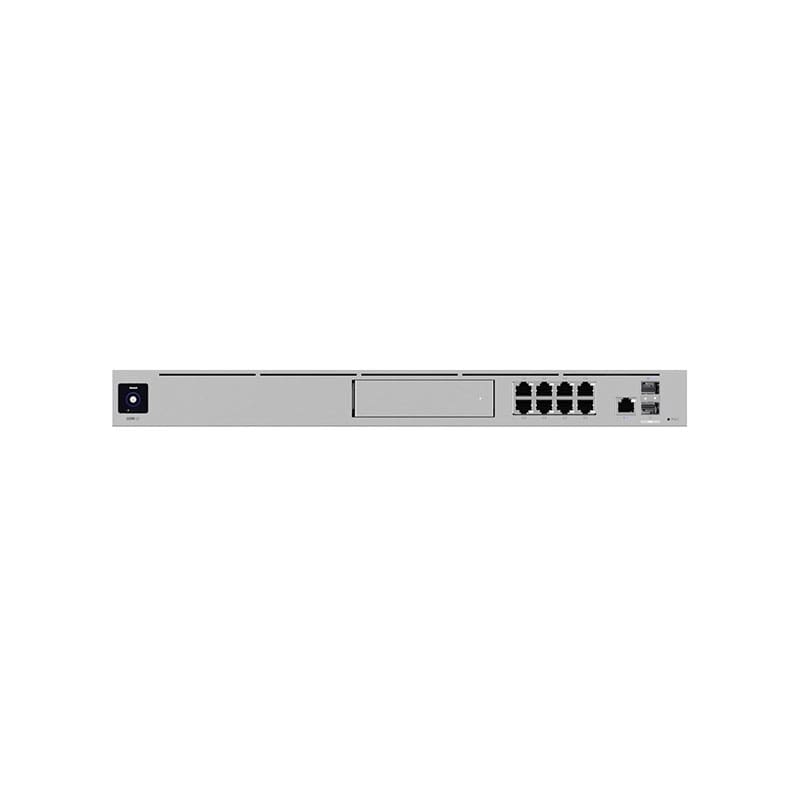

UDM-SE Technical Specifications
Ubiquiti Networks UniFi Dream Machine Special Edition
Brand Ubiquiti
Product Line Ubiquiti UniFi
Model Dream Machine Special Edition
Manufacturer Ubiquiti
Processor
Clock Speed 1.7 GHZ
Processors Installed 1
Total Processor Supported 1
Memory
Flash Memory Installed 16 GB
Memory Technology DDR4 SDRAM
RAM Installed 4 GB
Storage
Hard Drive Capacity 128 GB
Port Expansion Hard Drive Type SSD
Installed Quantity 1
Network & Communication
Compliant Standards
IEEE 802.3af, IEEE 802.3at
Connectivity Technology
Wired
Data Link Protocols
10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Features
15KV ESD Protector (air-gap discharge), 8KV ESD Protector (contact discharge), Bluetooth management, Firmware upgradable, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), Reset button, Routing
Form Factor
Rack-mountable
Power Over Ethernet (PoE)
PoE+
Product Type
Network management device
Status Indicators
HDD activity, HDD fault, Link/activity, RPS (Redundant Power Supply)
Connectivity
Interface Provided
1 x 10Gb Ethernet – SFP+, 1 x 10Gb Ethernet – SFP+ (WAN), 1 x 2.5 GBase-T – RJ-45 (WAN), 2 x 1000Base-T (PoE+) – RJ-45 – 30 W, 6 x 1000Base-T (PoE) – RJ-45 – 15.4 W
Power
Frequency 50/60 hertz
Power Provided 240 watt
Redundant Power Supply Optional
Required Voltage AC 100 – 240 volt
Technical Information
Built-in Devices
1.3″ touch screen display, NVR
Max Operating Temperature
104 degree Fahrenheit
Min Operating Temperature
14 degree Fahrenheit
Operating Humidity
5 – 95% (non-condensing)
Product Information
Device Type Internal power supply
Packaged Quantity 1
Network Device
Intrusion detection throughput: 3.5 Gbps, IPS throughput: 3.5 Gbps
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 10.91 lbs
Width 17.4 inch
Depth 11.2 inch
