UCUCS-EZ-C240M3S Technical Specifications
Cisco UCS C240 M3 High-Density Rack-Mount Server
Bay Provided
Form Factor :2.5″
Free Qty :8
Total Qty :24 Bays
Cache Memory
Installed Size :40 MB
Installed Size :40
Per Processor Size :20 MB
Per Processor Size :20
Type :L3 cache
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :24
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Dimensions & Weight
Depth :28 in
Height :3.4 in
Width :17.5 in
Display
Type :None.
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :6.4 cm
Type :Hot-swap
Expansion Slots
Size :Half-length, full-height
Size :Half-length, low-profile
Slot Comments :X8 mode
Type :PCIe 3.0 x16
Size :Three-quarter-length, full-height
Slot Comments :X16 mode
Type :PCIe 3.0 x24
Type :CPU
Type :DIMM 240-pin
Hard Drive
Installed Qty :16
Interface Class :Serial Attached SCSI
Removable :Hot-swap
Spindle Speed :15000 rpm
Type :HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :C240 M3 High-Density Rack-Mount Server Small Form Factor
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Qty :1
Type :Serial
Qty :2
Type :USB 2.0
Qty :8
Type :LAN (Gigabit Ethernet)
Type :KVM
Type :Management (NIC)
Type :VGA
Mainboard
Processor Socket :LGA2011 Socket
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1, UL 60950-1, VCCI Class A ITE
Height (Rack Units) :2U Rack Mount
Included Accessories :16 GB SD Memory Card, 2 x CPU Heatsink, Rack rail kit
Networking
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :2 x Intel I350
Ethernet Ports :8 x Gigabit Ethernet
Remote Management Controller :Emulex Pilot 3 iBMC
Remote Management Protocol :CLI, IPMI 2.0
Type :Network adapter
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Frequency Required :50/60 Hz
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Provided :1.2 kW
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Type :Power supply
Printer
Type :None

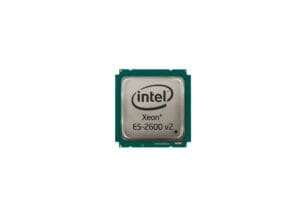

Processor
64-bit Computing :Yes
Clock Speed :2.7 GHz
Installed Qty :2
Manufacturer :Intel
Max Supported Qty :2
Max Turbo Speed :3.5 GHz
Number of Cores :8-core
Processor Main Features :Enhanced Intel SpeedStep Technology, Hyper-Threading Technology, Intel Execute Disable Bit, Intel Turbo Boost Technology 2, Intel Virtualization Technology
Processor Number :E5-2680
Server Scalability :2-way
Type :Xeon E5-2600 series
RAM
Configuration Features :8 x 8 GB + 8 x 4 GB
Empty Slots :8
Features :Dual rank, Low-voltage, Registered, Single rank
Form Factor :DIMM 240-pin
Installed Size :96 GB
Installed Size :96
Max Supported Size :768 GB
Max Supported Size :768
Memory Specification Compliance :PC3-12800
Memory Speed :1600 MHz
Rated Memory Speed :1600 MHz
Slots Qty :24 DDR3 Slots
Technology :DDR3 SDRAM
