UCSC-PCIE-QD16GF Technical Specifications

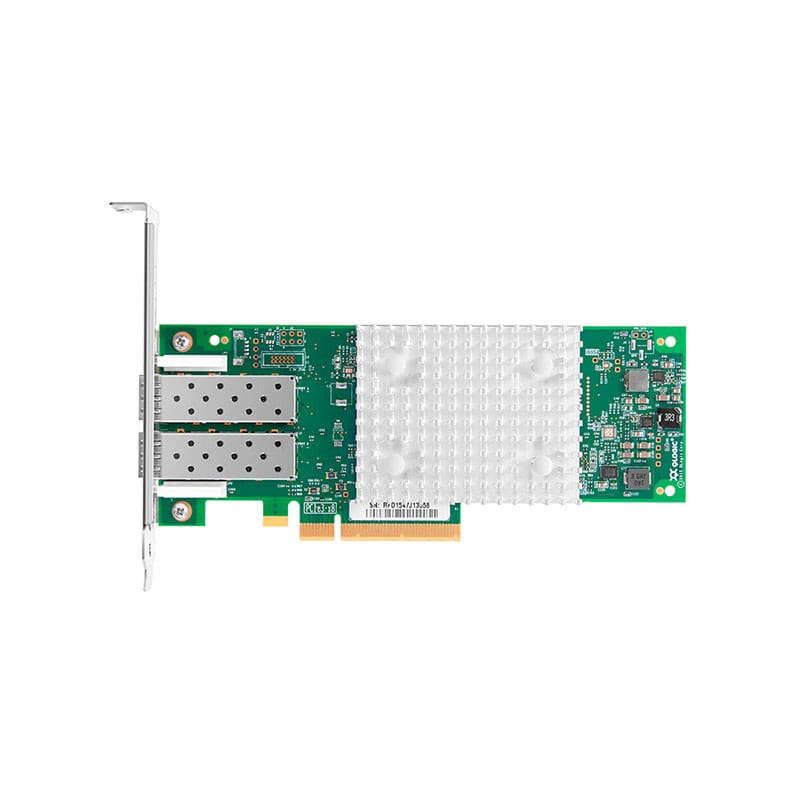

QLogic QLE2692 Host Bus Adapter PCIe 3.0 x8 16Gb Fibre Channel x 2
Brand: QLogic
Product Line: QLogic
Model: QLE2692
Manufacturer: Cisco Unified Computing
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 16Gb Fibre Channel
Data Transfer Rate: 16 GBps
Features: BIOS support, QLogic StorFusion, Quality of Service (QoS), UEFI support
Fibre Channel: FC-GS-2, FC-GS-3, FCP-2, FC-PI-5, FC-Tape, SCSI-FCP
Form Factor: Plug-in card
Host Interface: PCI Express 3.0 x8
PCI Specification Revision: PCIe 3.0
Product Type=: Host bus adapter
Remote Management: SMI-S
Connectivity
Interface Provided: 2 x 16Gb Fibre Channel
Port Quantity: 2
Network & Adapter Ports: 16Gb Fibre Channel
Technical Information
Max Operating Temperature: 131 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 – 90%
Product Information
Packaged Quantity: 1
