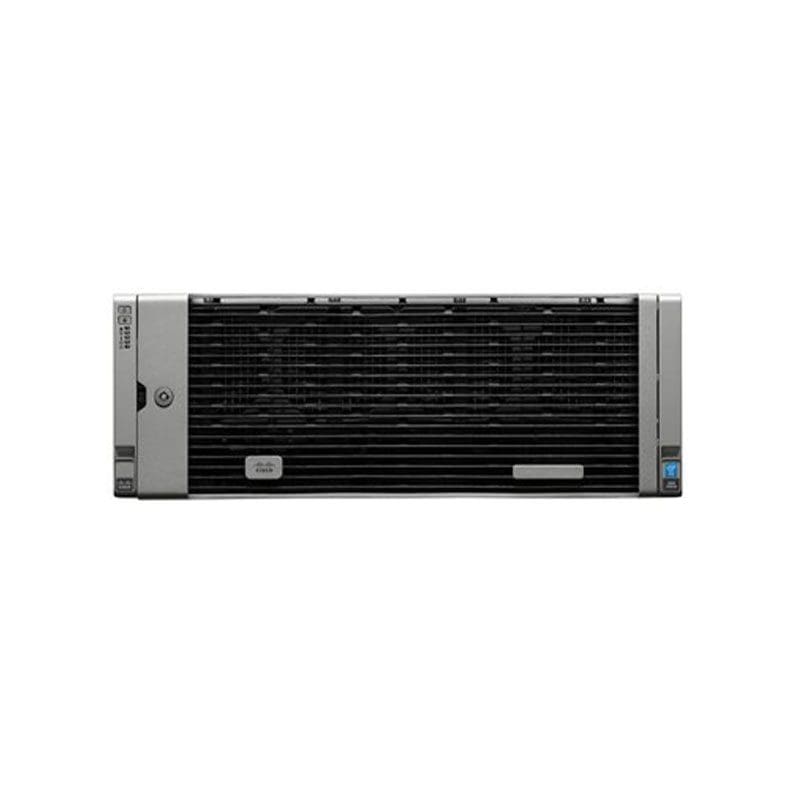

UCSC-C460-M4-CH Technical Specifications
Cisco Systems Distribution Only Ucs C460
General Information
Product Name Distribution Only Ucs C460 M4 Base without CPU Heat
Manufacturer Part Number UCSC-C460-M4-CH
Product Series C460 M4
Product Type Barebone System
Interfaces/Ports
Total Number of USB Ports 3
Controllers
Controller Type Serial SATA
Serial Attached SCSI (SAS)
RAID Supported Yes
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity 8 MB
I/O Expansions
Number of Total Expansion 12 Bays
Number of Internal 2.5″ Bays 12
Number of Total Expansion Slots 10
Number of PCI Express x4 Slots 1
Number of PCI Express x8 Slots 6
Number of PCI Express x16 Slots 3
Memory
Maximum Memory 6 TB
Number of Total Memory Slots 96
Network & Communication
Ethernet Technology Gigabit Ethernet
10 Gigabit Ethernet
Power Description
Input Voltage 230 V AC
Processor & Chipset
Number of Processors Supported 4
Processor Supported Xeon
64-bit Processing Yes
Chipset Manufacturer Intel
Chipset Model Intel C602J
Physical Characteristics
Form Factor Rack-mountable
Rack Height 4U Rack Mount
Height 6.9″
Width 19″
Depth 32.7″
