UCSC-C3X60-SVRN2 Technical Specifications

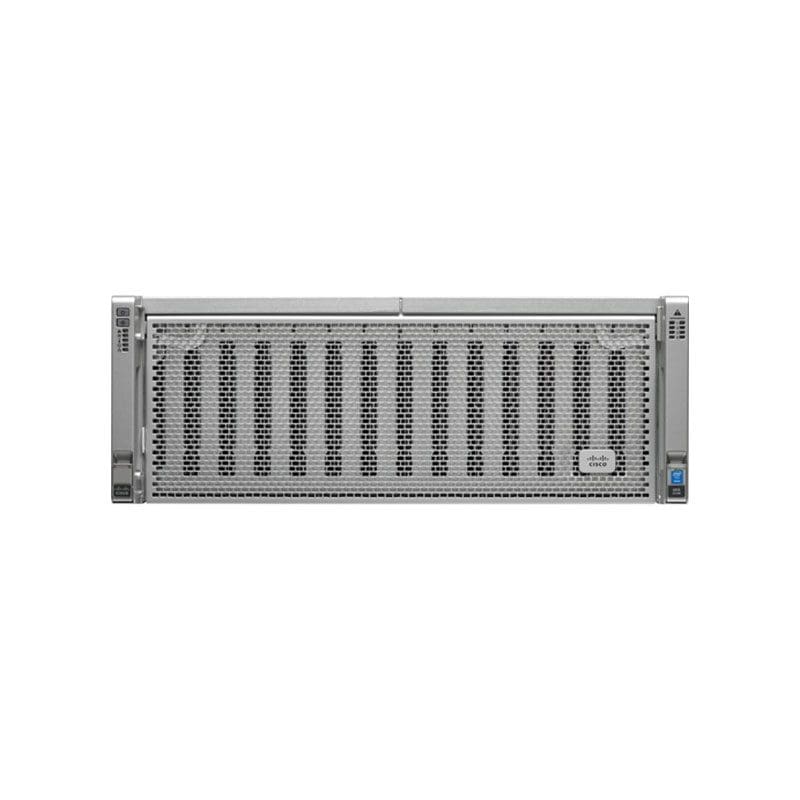

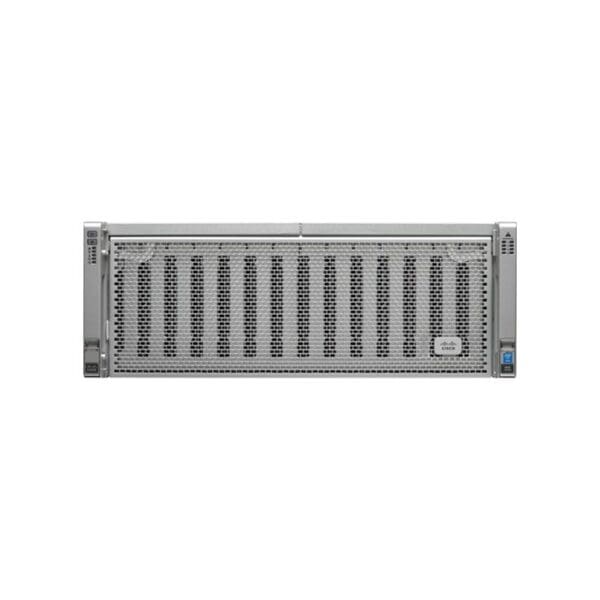

Cisco Systems Ucs C3X60 Server N E5-2620
General Information
Product Name CISCO UCS C3X60 Server N E5-2620 V2 CPU 256GB 4GB
Manufacturer Part Number UCSC-C3X60-SVRN2
Product Series C3160
Product Type Server
Cisco UCS
Controllers
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60
Memory
Standard Memory 256 GB
Maximum Memory 256 GB
Memory Technology DDR3 SDRAM
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Input Voltage 230 V AC
Number of Power Supplies Installed 4
Maximum Power Supply Wattage 1050 W
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Intel Xeon
Processor Model E5-2620v2
Processor Core Hexa-core (6 Core)
Processor Speed 2.10 GHz
Physical Characteristics
Form Factor Rack
Rack Height 4U Rack Mount
Height 6.9″
Width 17.5″
Depth 32″
