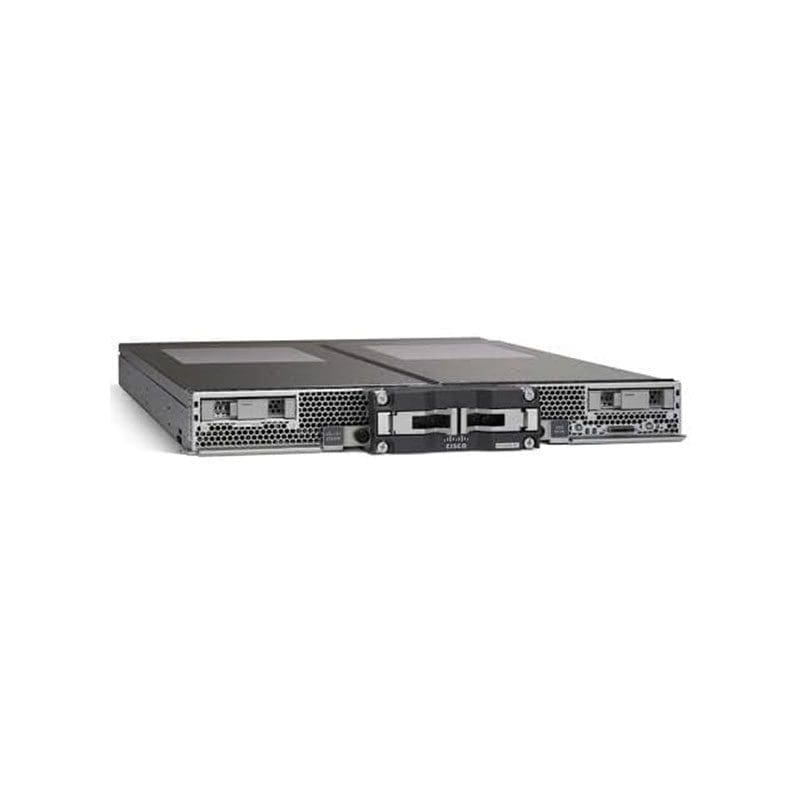

UCSB-EX-M4-3A Technical Specifications
Cisco UCS Scalable M4 Blade Module – blade
Bay Provided
Form Factor :2.5″
Free Qty :4
Total Qty :4 Bays
Card Reader
Supported Flash Memory Cards :SD Memory Card
Chassis
Form Factor :Blade Server
Hot-Swap Bays Qty :4
Manufacturer Form Factor :Blade
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Dimensions & Weight
Depth :25.5 in
Height :4 in
Weight :66.14 lbs
Width :17.2 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :5 – 93% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :50 °F
Expansion Bays
Form Factor (metric) :6.4 cm
Type :Hot-swap
Expansion Slots
Type :CPU
Type :DIMM 240-pin
Type :Expansion slot
Hard Drive
Type :No HDD
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :Scalable M4 Blade Module
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Location :1 internal
Type :USB 2.0
Qty :1
Type :KVM
Mainboard
Chipset Type :Intel C602J
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, AS/NZS CISPR22:2004 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438(95) Class A, EN 300 386, EN 300386, EN 60950-1 Second Edition, EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15, GB4943.1-2001, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, UL 60950-1, VCCI Class A
Included Accessories :4 x blank filler panels, 4 x CPU heatsinks, Scalability connector
Networking
Remote Management Controller :Cisco Integrated Management Controller
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Printer
Type :None
Processor
Max Supported Qty :4
Server Scalability :2-way
Type :No CPU
Upgradability :Upgradable
RAM
Empty Slots :96
Installed Size :0 GB
Installed Size :0
Max Supported Size :6 TB
Max Supported Size :6
Slots Qty :96 DDR3 Slots
Technology :DDR3 SDRAM
Slot Provided
Free Qty :4
Total Qty :4
Free Qty :6
Total Qty :6
Free Qty :96
Total Qty :96
Storage Controller
Interface Type :Serial ATA-600 / SAS 3.0 (SATA/SAS)
RAID Level :JBOD, RAID 0, RAID 1
Storage Controller Name :LSISAS3008
Type :RAID
