UCSB-EX-M4-2A-U Technical Specifications

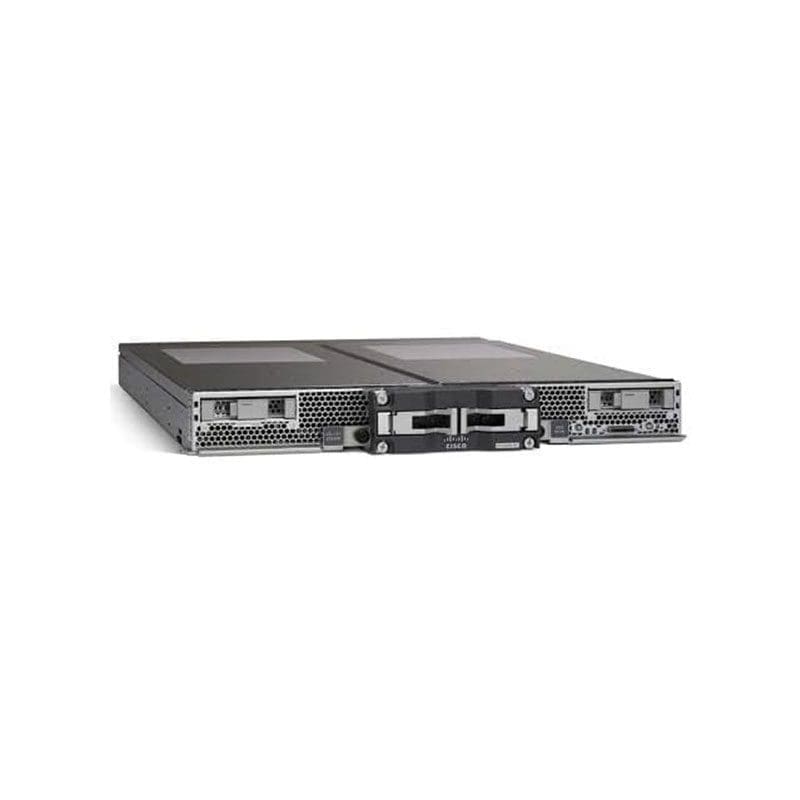

Cisco Systems Ucs Scalable B460 M4 Blade FD
General Information
Product Name Cisco Ucs Scalable B460 M4 Blade FD
Manufacturer Part Number UCSB-EX-M4-2A-U
Product Series B460 M4
Product Type Barebone System
Controllers
Controller Type 12Gb/s SAS
RAID Supported Yes
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity 512 MB
I/O Expansions
Number of Total Expansion 4 Bays
Number of Internal 2.5″ Bays 4
Memory
Maximum Memory 6 TB
Memory Technology DDR3 SDRAM
Memory Standard DDR3-1600/PC3-12800
Number of Total Memory 96 DDR3 Slots
Network & Communication
Ethernet Technology Ethernet
Processor & Chipset
Number of Processors Supported 4
Processor Socket Socket R LGA-2011
Processor Supported Xeon
64-bit Processing Yes
Chipset Manufacturer Intel
Chipset Model C602J
Physical Characteristics
Form Factor Blade Server
Height 4″
Width 17.2″
Depth 25.5″
