UCSB-B420-M4-U Technical Specifications

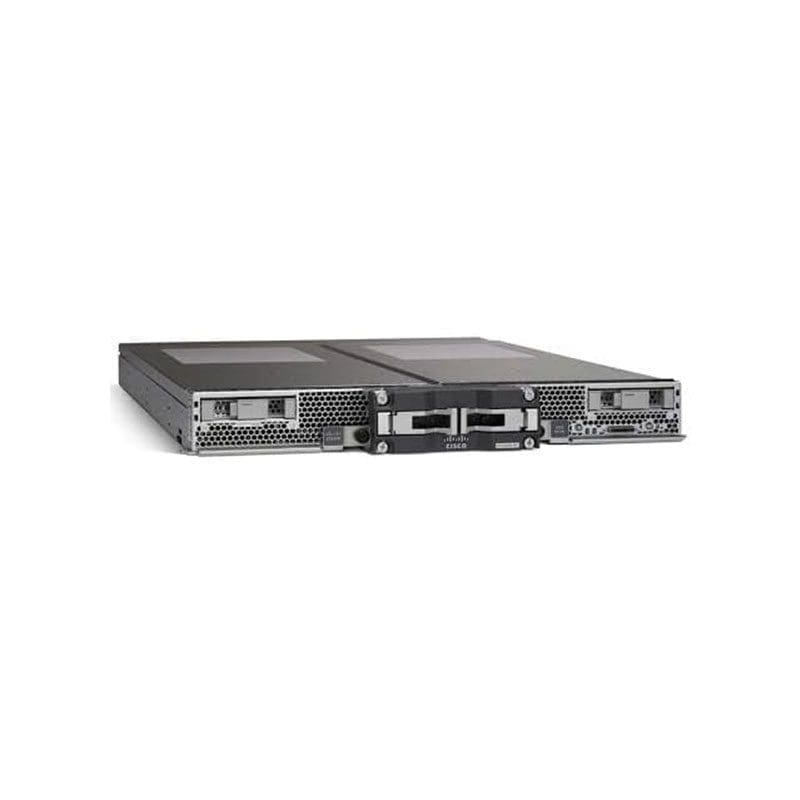

Cisco Systems Ucs B420 M4 Blade Server with FD
General Information
Product Name Cisco Ucs B420 M4 Blade Server with FD
Manufacturer Part Number UCSB-B420-M4-U
Product Series B420 M4
Product Type Barebone System
Interfaces/Ports
Total Number of USB Ports 1
Controllers
Controller Type 12Gb/s SAS
RAID Supported Yes
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity 512 MB
I/O Expansions
Number of Internal 2.5″ 4 Bays
Number of Total Expansion Slots 3
Memory
Maximum Memory 3 TB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-2133/PC4-17000
Number of Total Memory 48 DDR4 Slots
Network & Communication
Ethernet Technology Ethernet
Processor & Chipset
Number of Processors Supported 4
Processor Supported Xeon
64-bit Processing Yes
Chipset Manufacturer Intel
Chipset Model C610
Physical Characteristics
Form Factor Blade Server
Height 2″
Width 16.5″
Depth 24.4″
