UCS-SPR-C220M5-B2 Technical Specifications

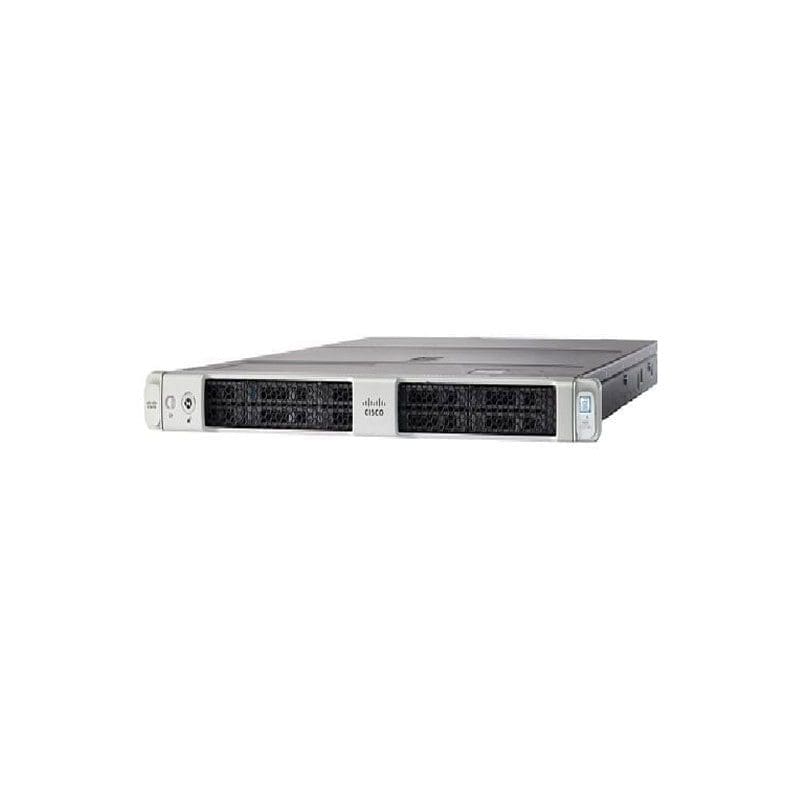

Cisco Systems SP C220 M5SX with 2X3106
General Information
Product Name SP C220 M5SX with 2X3106 2X16GB Memory 12G
Manufacturer Part Number UCS-SPR-C220M5-B2
Product Series C220 M5
Product Type Server
Controllers
Controller Type 12Gb/s SAS
RAID Supported Yes
Display & Graphics
Graphics Controller Manufacturer ASPEED
Graphics Controller Model Pilot 4
Graphics Memory Capacity Up to 16 MB
I/O Expansions
Number of Total Expansion 10 Bays
Number of Internal 2.5″ Bays 10
Hot Swappable Bays Yes
Memory
Standard Memory 32 GB
Maximum Memory 3 TB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24 DDR4 Slots
Number of Occupied Memory Slots 2
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Power Description
Number of Power Supplies Supported 2
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon Bronze
Processor Model 3106
Processor Core Octa-core (8 Core)
Processor Speed 1.70 GHz
