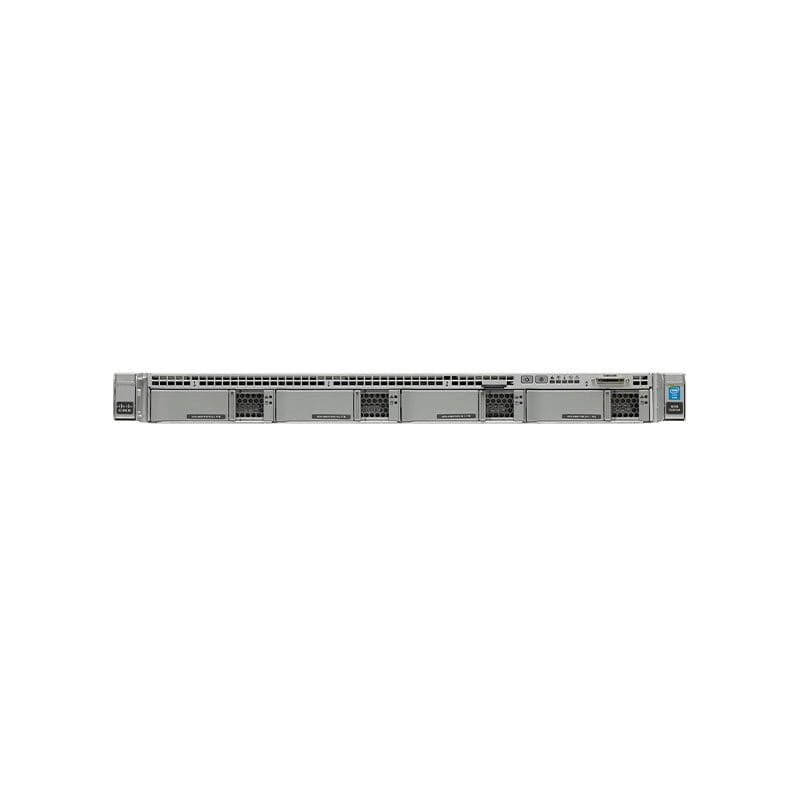

UCS-SPR-C220M4-EP1 Technical Specifications
Cisco Systems Ucs C220M4S with 2XE52630
General Information
Product Name Cisco Ucs C220M4S with 2XE52630 V4 2X16GB Mraid
Manufacturer Part Number UCS-SPR-C220M4-EP1
Product Series C220 M4
Product Type Server
Controllers
Controller Type 12Gb/s SAS
Serial SATA
RAID Supported Yes
RAID Levels 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
Memory
Standard Memory 32 GB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24
Number of Occupied Memory Slots 2
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 770 W
Storage
Total Solid State Drive Capacity 32 GB
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Intel Xeon
Processor Model E5-2630v4
Processor Core Deca-core (10 Core)
Processor Speed 2.20 GHz
Physical Characteristics
Form Factor Rack
Rack Height 1U Rack Mount
Height 1.7″
Width 19″
Depth 31″
