UCS-SPR-C220M4-E3 Technical Specifications

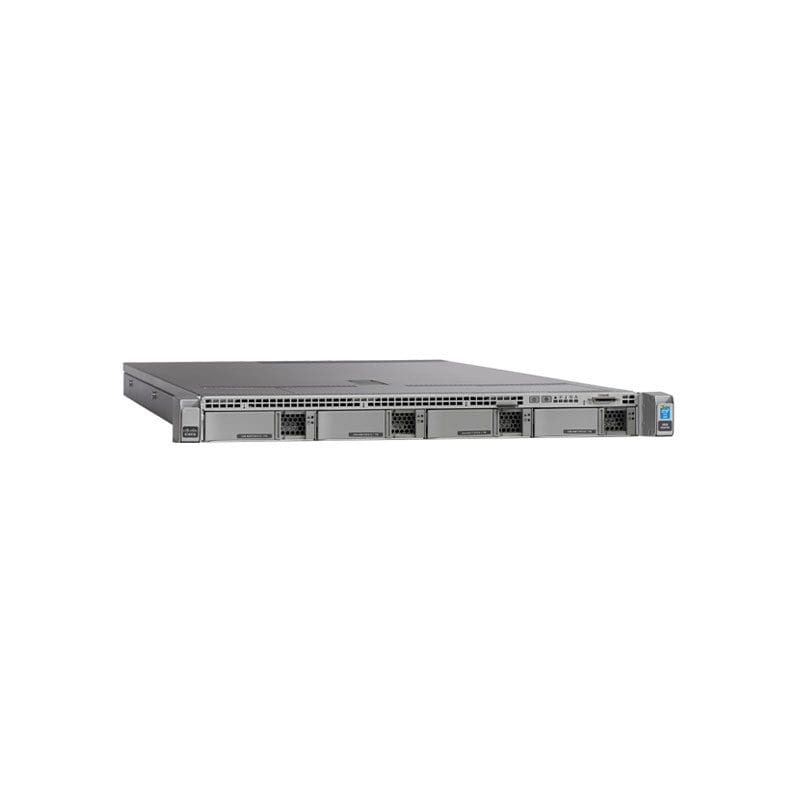

Cisco UCS SmartPlay Select C220 M4S Advanced
Bay Provided
Form Factor :2.5″ SFF
Free Qty :8
Total Qty : 8 Bays
Cache Memory
Installed Size :50 MB
Per Processor Size :25 MB
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :8
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface : SATA/SAS
Dimensions & Weight
Depth :29.8 in
Height :1.7 in
Width :16.9 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Size :Half-length, low-profile
Size :Three-quarter-length, full-height
Type :PCIe 3.0 x24
Type :CPU
Type :DIMM 288-pin
Type :PCIe
Type :SD card (internal)
Hard Drive
Type :No HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing Disti
Model :SmartPlay Select C220 M4 Advanced 2
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Connector Type :RJ-45
Type :Serial
Location :1 in front
Type :KVM
Qty :1
Type :VGA
Qty :2
Type :USB 3.0
Type :LAN (Gigabit Ethernet)
Type :Management (NIC)
Mainboard
Processor Socket :LGA2011-v3 Socket
Miscellaneous
Color Category :Silver
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, Directive 2004/108/EC, Directive 2006/95/EC, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GB4943.1-2001, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, UL 60950-1 Second Edition, VCCI Class A
Height (Rack Units) :1U Rack Mount
Included Accessories :2 x CPU Heatsink, 32 GB SD Memory Card, Cisco Ball Bearing Rail Kit, CPU asset tab ID label
Networking
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :Intel I350
Ethernet Ports :2 x Gigabit Ethernet
Features :PXE support
Remote Management Controller :Cisco Integrated Management Controller
Optical Storage
Drive Type :No optical drive
Type :None
