UCS-SPR-C220M4-E1 Technical Specifications

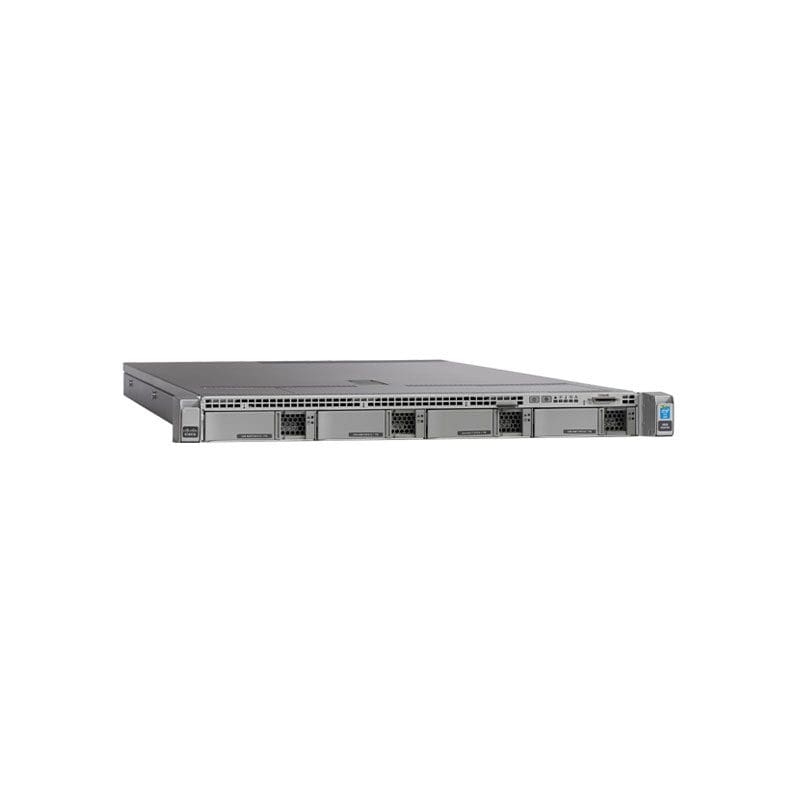

Cisco Systems Ucs C220M4S with 2XE52609V3
General Information
Product Name Cisco UCS C220M4S with 2XE52609V3 2X8GB 2X7700W
Manufacturer Part Number UCS-SPR-C220M4-E1
Product Series C220 M4
Product Type Server
Controllers
Controller Type 12Gb/s SAS
Serial ATA
RAID Supported Yes
Memory
Standard Memory 16 GB
Memory Technology DDR4 SDRAM
Number of Total Memory 24 DDR4 Slots
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 770 W
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E5-2609v3
Processor Core Hexa-core (6 Core)
Processor Speed 1.90 GHz
Physical Characteristics
Form Factor Rack
Rack Height 1U Rack Mount
Other Information
Product Family C220 M4
Cache 15 MB
Memory Card Reader Yes
64-bit Processing Yes
Chipset Manufacturer Intel
Chipset Model C610
QuickPath Interconnect 6.40 GT/s
Hyper-Threading No
Number of Total Expansion Slots 2
Number of PCI Express x16 Slots 2
VGA Yes
Network (RJ-45) Yes
Remote Management Yes
Total Number of USB Ports 3
Number of USB 3.0 Ports 2
Memory Card Supported SD
Memory Standard DDR4-2133/PC4-17000
