UCS-SPR-C220M4-BA2 Technical Specifications

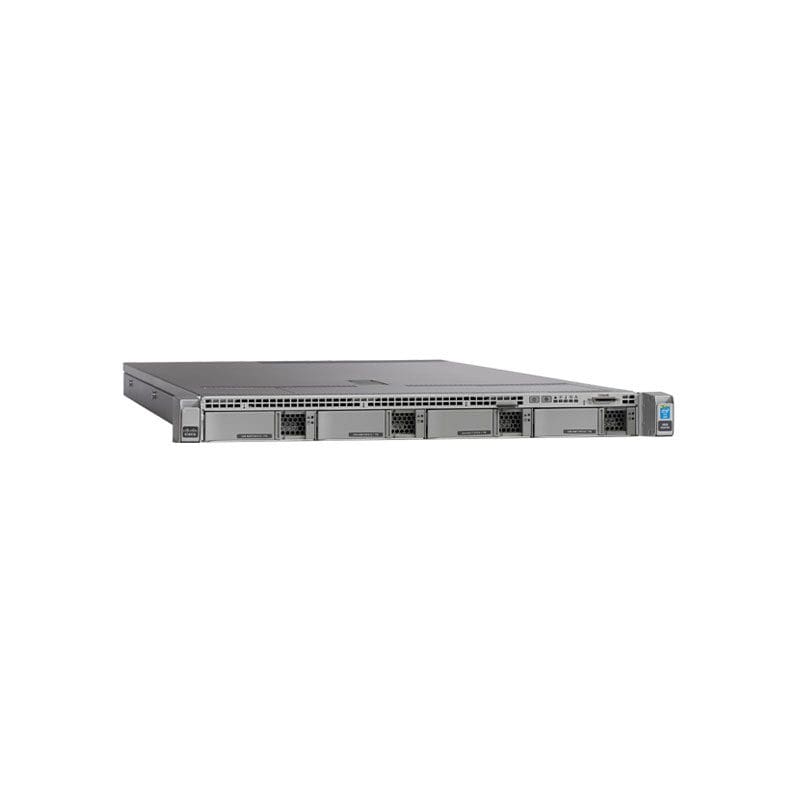

Cisco Systems Ucs C220M4S with 2XE52640
General Information
Product Name Cisco Ucs C220M4S with 2XE52640 V4 2X32GB Mraid 2X770W 32G SD Rails
Manufacturer Part Number UCS-SPR-C220M4-BA2
Product Series C220 M4
Product Type Server
Controllers
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0, 1, 10
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
Memory
Standard Memory 64 GB
Maximum Memory 1.50 TB
Memory Technology DDR4 SDRAM
Memory Slots: 24 x DDR4 RAM Slots
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 770 W
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E5-2640v4
Processor Core Deca-core (10 Core)
Processor Speed 2.40 GHz
Physical Characteristics
Form Factor Rack
Rack Height 1U Rack Mount
Height 1.7″
Width 19″
Depth 31″
