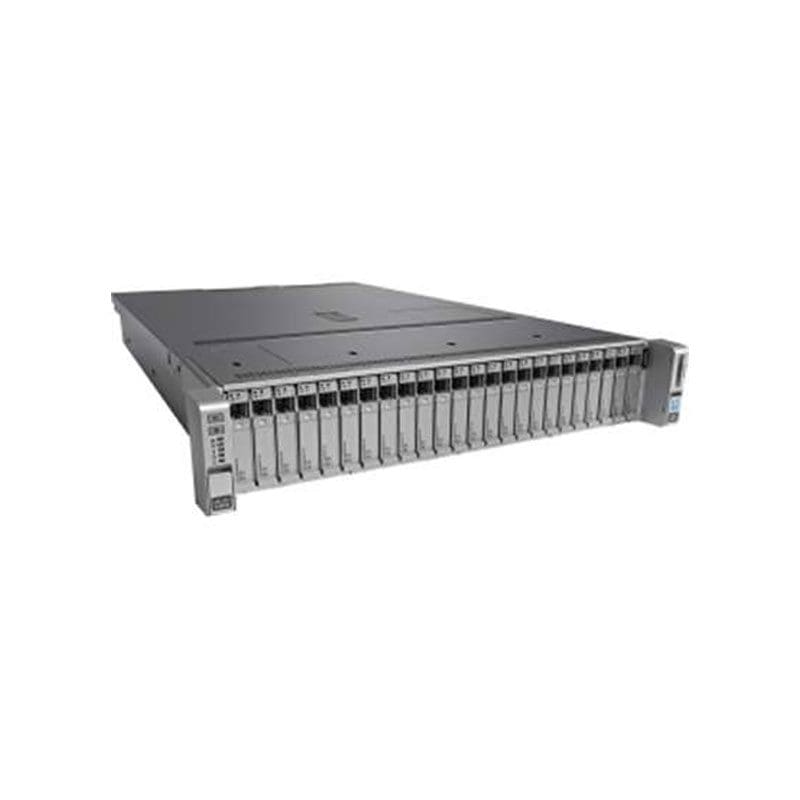

UCS-SPL-C240M4-S1 Technical Specifications
Cisco Systems Ucs SP Select C240M4SX STD1
General Information
Product Name Ucs SP Select C240M4SX STD1 2XE52630 V3
Manufacturer Part Number UCS-SPL-C240M4-S1
Product Series C240 M4
Product Type Server
Controllers
Controller Type Serial SATA
RAID Supported Yes
RAID Levels 0, 1, 10
Cisco UCS
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
Memory
Standard Memory 128 GB
Maximum Memory 1.50 TB
Memory Technology DDR4 SDRAM
Memory Slots: 24 x DDR4 RAM Slots
Network & Communication
Ethernet Technology Gigabit Ethernet
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Intel Xeon
Processor Model E5-2630v3
Processor Core Octa-core (8 Core)
Processor Speed 2.40 GHz
Physical Characteristics
Form Factor Rack
Rack Height 2U Rack Mount
Height 3.4″
Width 19″
Depth 30.2″
