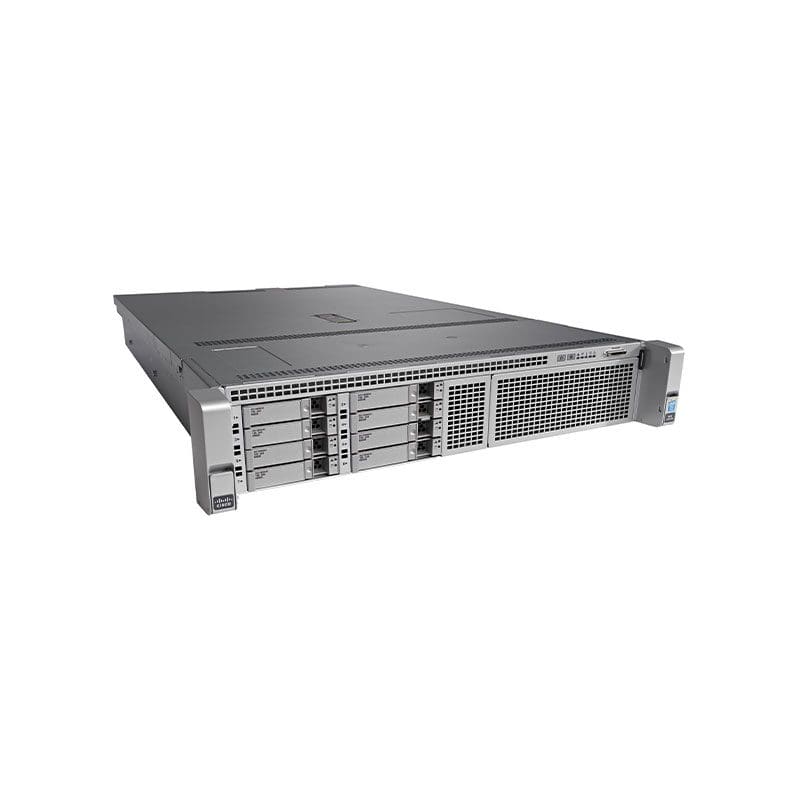

UCS-SPL-C240M4-A2 Technical Specifications
Cisco Systems Ucs SP Select C240M4SX
General Information
Product Name Ucs SP Select C240M4SX ADVANCED2
Manufacturer Part Number UCS-SPL-C240M4-A2
Product Series C240 M4
Product Type Server
CIsco UCS
Controllers
Controller Type 12Gb/s SAS
Serial ATA
RAID Supported Yes
RAID Levels 0, 1, 5, 10
Memory
Standard Memory 256 GB
Memory Technology DDR4 SDRAM
Memory Slots: 24 x DDR4 RAM Slots
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 1400 W
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Intel Xeon
Processor Model E5-2670v3
Processor Core Dodeca-core (12 Core)
Processor Speed 2.30 GHz
Physical Characteristics
