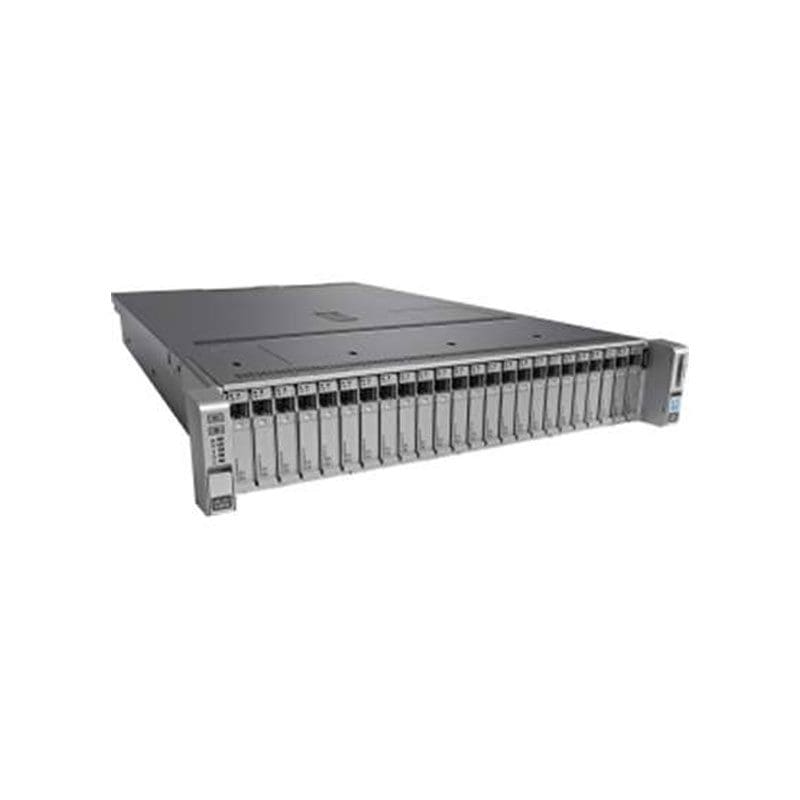

UCS-SPL-C240M4-A1 Technical Specifications
Cisco Systems Ucs SP Select C240M4SX
General Information
Product Name Ucs SP Select C240M4SX Advanced with 2XE52680V3
Manufacturer Part Number UCS-SPL-C240M4-A1
Product Series C240 M4
Product Type Server
Controllers
Controller Type Serial SATA
RAID Supported Yes
RAID Levels 0, 1, 10
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
Memory
Standard Memory 256 GB
Maximum Memory 1.50 TB
Memory Technology DDR4 SDRAM
Memory Slots: 24 x DDR4 RAM Slots
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E5-2680 v3
Processor Core Dodeca-core (12 Core)
Processor Speed 2.50 GHz
Physical Characteristics
Form Factor Rack
Rack Height 2U Rack Mount
Height 3.4″
Width 19″
Depth 30.2″
