UCS-SPL-C220M4-S1 Technical Specifications

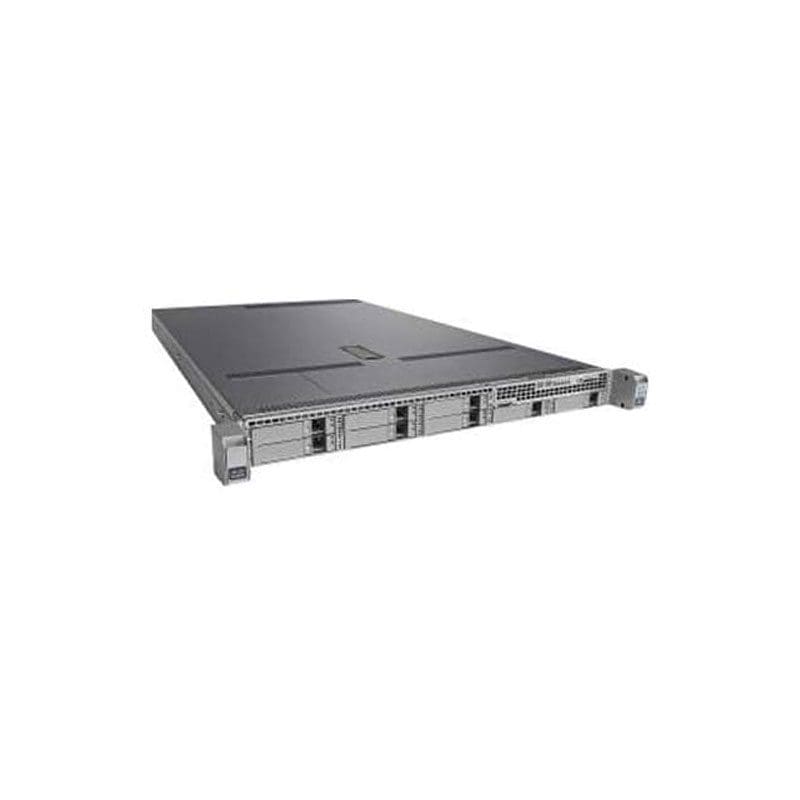

Cisco Systems Ucs SP Select C220M4S
General Information
Product Name Ucs SP Select C220M4S STD1 2XE52630 V3
Manufacturer Part Number UCS-SPL-C220M4-S1
Product Series C220 M4
Product Type Server
Cisco UCS
Controllers
Controller Type 12Gb/s SAS
Serial SATA/600
RAID Supported Yes
RAID Levels 0, 10
Display & Graphics
Graphics Memory Capacity Up to 8 MB
Memory
Standard Memory 64 GB
Maximum Memory 384 GB
Memory Technology DDR4 SDRAM
Memory Slots: 24 x DDR4 RAM Slots
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 770 W
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E5-2630v3
Processor Core Octa-core (8 Core)
Processor Speed 2.40 GHz
Physical Characteristics
Form Factor Rack
Depth 29.8″
