UCS-SP7-SR-B200-V Technical Specifications

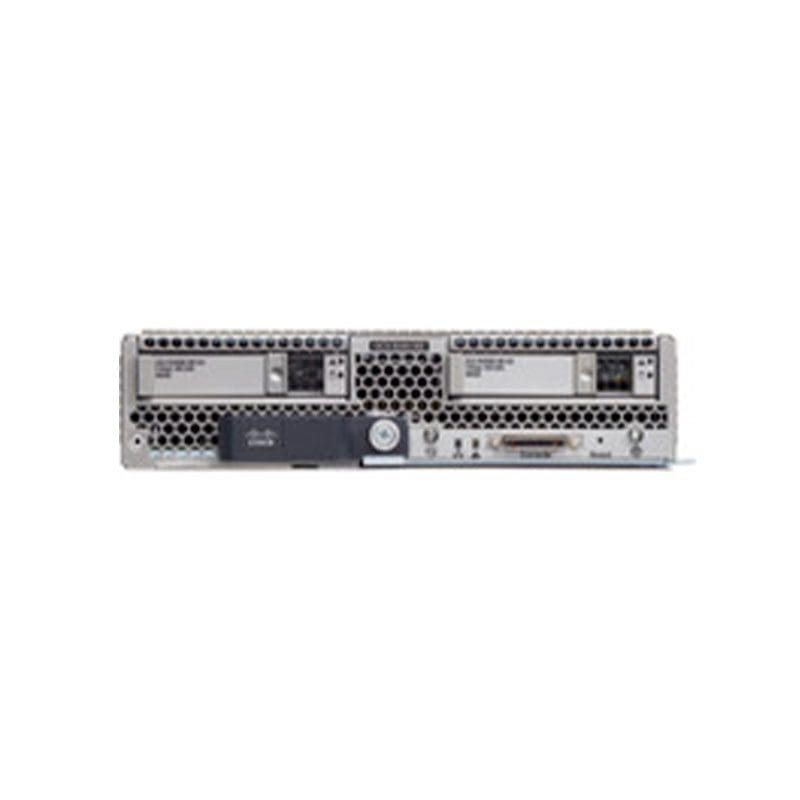

Cisco UCS B200 M3 Blade Server blade
Cache Memory
Installed Size :30 MB
Per Processor Size :15 MB
Type :L3 cache
Chassis
Form Factor :Blade Server
Hot-Swap Bays Qty : 2 Bays
Manufacturer Form Factor :Blade
Server Storage Bays : Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Dimensions & Weight
Depth :24.4 in
Height :2 in
Width :8 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :5 – 93% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :50 °F
Expansion Bays
Form Factor (metric) :6.4 cm
Type :Hot-swap
Expansion Slots
Type :CPU
Type :DIMM 240-pin
Type :Expansion slot
Hard Drive
Type :No HDD
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :B200 M3 Blade Server (Not a standalone SKU)
Packaged Quantity :1
Product Line : Cisco UCS
Interface Provided
Qty :1
Type :KVM
Mainboard
Chipset Type :Intel C600
Processor Socket :LGA2011 Socket
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1, UL 60950-1, VCCI Class A ITE
Included Accessories :2 x CPU Heatsink
Networking
Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3ae, IEEE 802.3x
Data Link Protocol :10 Gigabit Ethernet, 10Gb Fibre Channel over Ethernet (FCoE)
Ethernet Controller(s) :Cisco UCS Virtual Interface Card 1240
Ethernet Ports :4 x 10 Gigabit Ethernet
Form Factor :Plug-in module
Remote Management Controller :Cisco Integrated Management Controller
