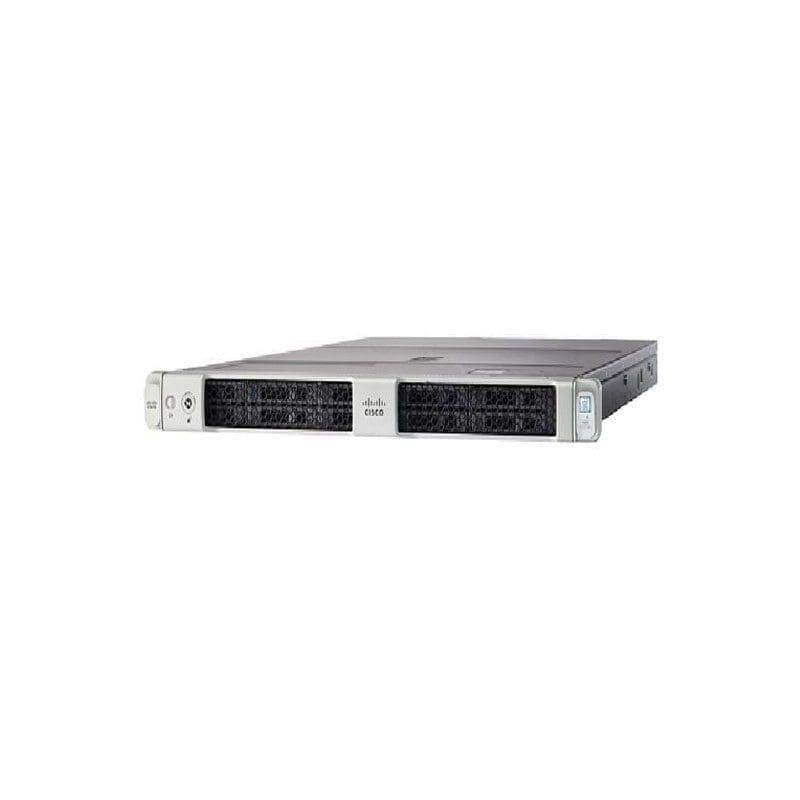

UCS-SP-C220M5-A3 Technical Specifications
Cisco Systems SP C220 M5SX 2X5120 6X16GB
General Information
Product Name SP C220 M5SX 2X5120 6X16GB Memory Single Rank
Manufacturer Part Number UCS-SP-C220M5-A3
Product Series C220 M5
Product Type Server
Controllers
Controller Type 12Gb/s SAS
Ethernet Technology: 40 Gigabit Ethernet
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60, JBOD
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
I/O Expansions
Number of Total Expansion 10 Bays
Number of Internal 2.5″ Bays 10
Hot Swap Bays Yes
Memory
Standard Memory 96 GB
Maximum Memory 3 TB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24 DDR4 Slots
Number of Occupied Memory Slots 6
Network & Communication
Ethernet Technology 40 Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 770 W
Redundant Power Supply Yes
