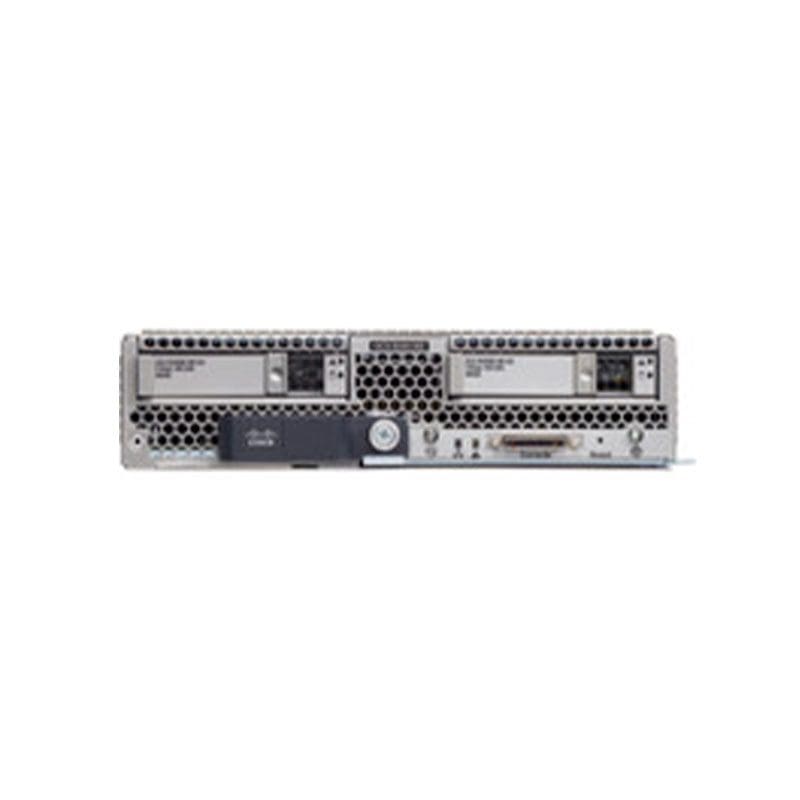

UCS-SP-B200M5-A1 Technical Specifications
Cisco Systems Ucs B200M5 ADV1 2X5118
General Information
Product Name Ucs B200M5 ADV1 2X5118 12X16GB VIC1340
Manufacturer Part Number UCS-SP-B200M5-A1
Product Series B200 M5
Product Type Server
Cisco UCS
Controllers
Controller Type Serial ATA
12Gb/s SAS (SATA/SAS)
RAID Supported Yes
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
I/O Expansions
Number of Total Expansion 2 Bays
Number of Internal 2.5″ Bays 2
Hot Swap Bays Yes
Memory
Standard Memory 96 GB
Maximum Memory 3 TB
Memory Technology SDRAM
Number of Total Memory 24 DDR4 Slots
Number of Occupied Memory Slots 6
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon Gold
Processor Model 5118
Processor Core Dodeca-core (12 Core)
Processor Speed 2.30 GHz
Physical Characteristics
Form Factor Blade Server
Height 2″
Width 8″
Depth 24.4″
