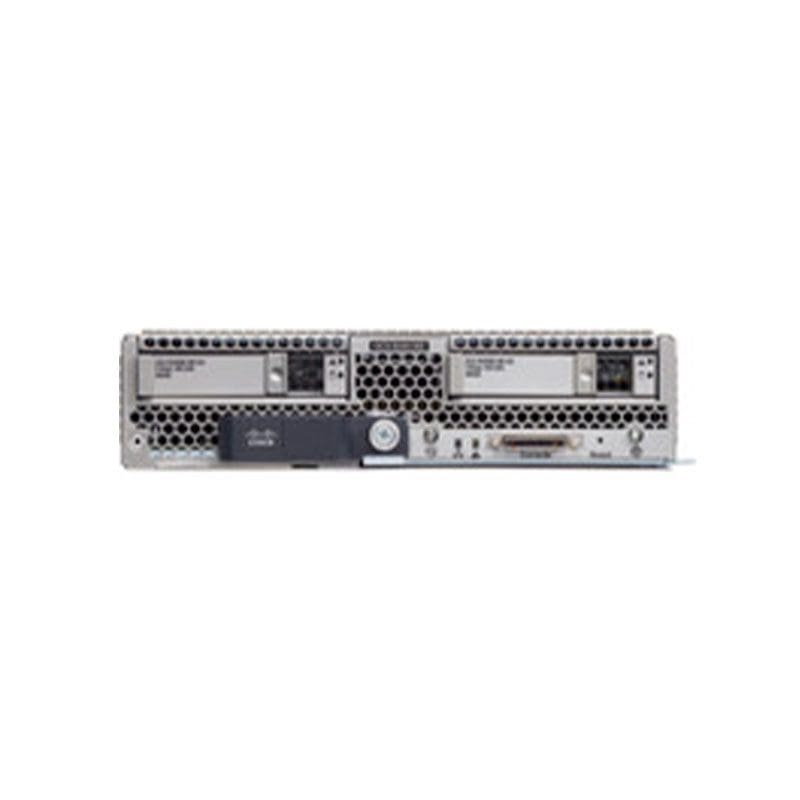

UCS-SP-B200M4-F1 Technical Specifications
Cisco Systems B200M4HI-FREQ1 2XE52643V3
General Information
Product Name B200M4HI-FREQ1 2XE52643V3 8X32GB VIC1340
Manufacturer Part Number UCS-SP-B200M4-F1
Product Series B200 M4
Product Type Server
Cisco UCS
Controllers
Controller Type Serial SATA/600
12Gb/s SAS
RAID Supported Yes
RAID Levels 0, 1
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
Memory
Standard Memory 256 GB
Maximum Memory 1.50 TB
Memory Technology DDR4 SDRAM
Memory Slots: 24 x DDR4 RAM Slots
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Storage
Total Hard Drive Capacity No
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Intel Xeon
Processor Model E5-2643v3
Processor Core Hexa-core (6 Core)
Processor Speed 3.40 GHz
Software
Operating System No
Physical Characteristics
Form Factor Blade Server
Height 2″
Width 8″
Depth 24.4″
