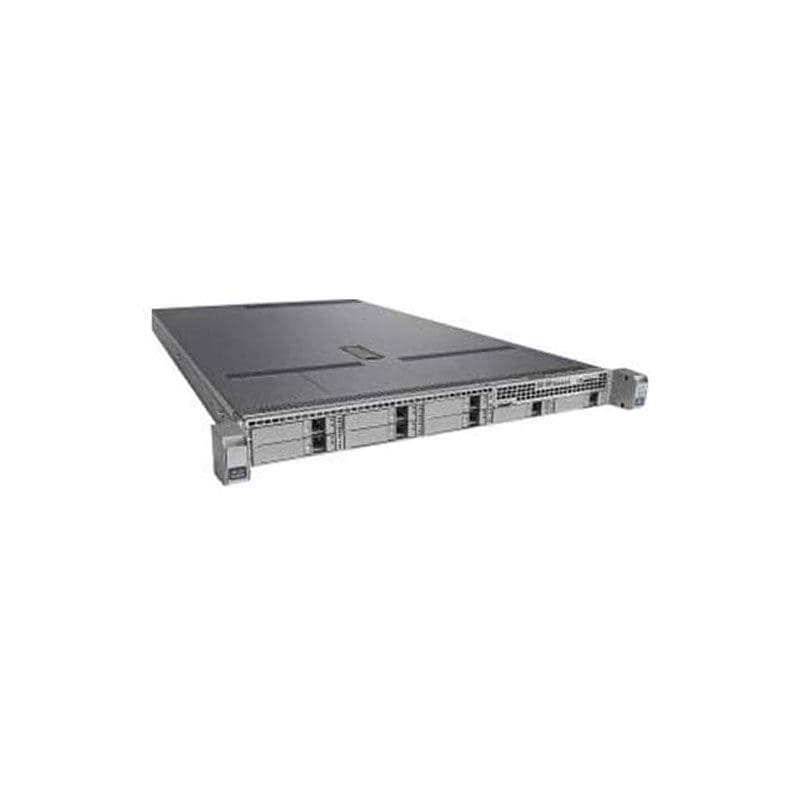

UCS-EZ8-C220M4-V Technical Specifications
Cisco Systems Ucs SP8 C220M4S Value
General Information
Product Name Ucs SP8 C220M4S Value E5-2650 V3 8X16GB
Manufacturer Part Number UCS-EZ8-C220M4-V
Product Series C220 M4
Product Type Server
Cisco UCS
Controllers
Controller Type 12Gb/s SAS
Serial SATA
Cisco UCS
RAID Supported Yes
RAID Levels 0, 1, 5, 10
Memory
Standard Memory 128 GB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24 DDR4 Slots
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 770 W
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Intel Xeon
Processor Model E5-2650v3
Processor Core Deca-core (10 Core)
Processor Speed 2.30 GHz
Physical Characteristics
Form Factor Rack
Rack Height 1U Rack Mount
Other Information
Product Family C220 M4
Cache 25 MB
Memory Card Reader Yes
64-bit Processing Yes
Chipset Manufacturer Intel
Chipset Model C610
QuickPath Interconnect 9.60 GT/s
Hyper-Threading Yes
Number of Total Expansion Slots 2
Number of PCIe Express x16 Slots 2
VGA Yes
Network (RJ-45) Yes
Remote Management Yes
Total Number of USB Ports 3
Number of USB 3.0 Ports 2
Maximum Turbo Speed 3 GHz
Memory Card Supported SD
