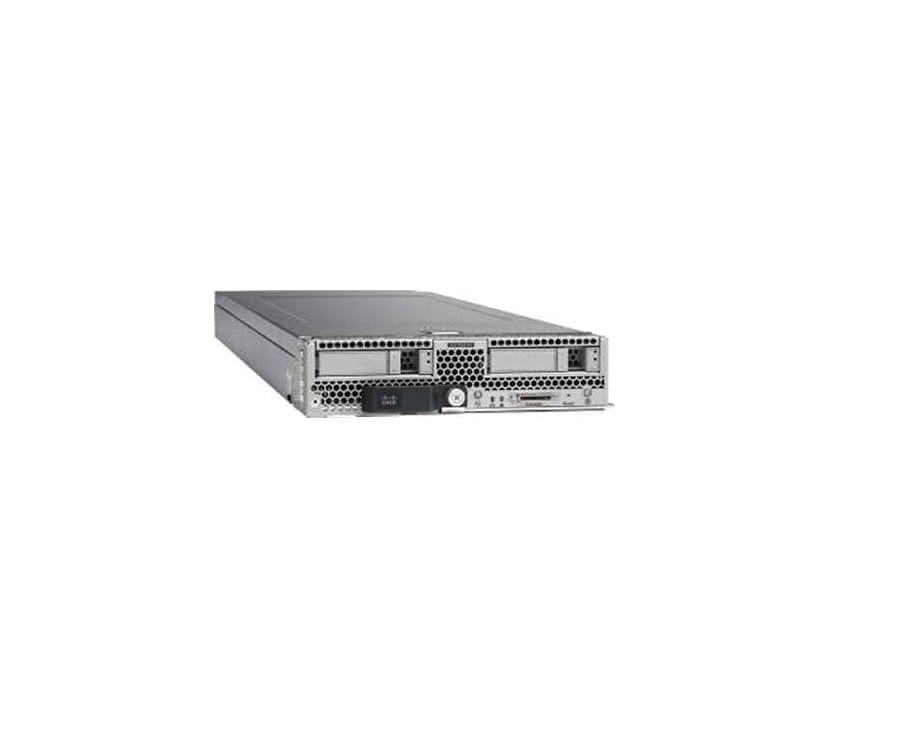

UCS-EZ7-B200-P Technical Specifications
Cisco Systems Ucs SP7 B200 Performance
General Information
Product Name Ucs SP7 B200 Performance Exp
Manufacturer Part Number UCS-EZ7-B200-P
Product Series B200 M3
Product Type Server
Cisco UCS
Controllers
Controller Type Serial Attached SCSI (SAS)
RAID Supported Yes
RAID Levels 0, 1
I/O Expansions
Number of Total Expansion 2 Bays
Number of Internal 2.5″ Bays 2
Memory
Standard Memory 256 GB
Maximum Memory 768 GB
Memory Technology DDR3 SDRAM
Number of Total Memory Slots 24 DDR3 Slots
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E5-2680v2
Processor Core Deca-core (10 Core)
Processor Speed 2.80 GHz
Software
Operating System No
Physical Characteristics
Form Factor Blade Server
Other Information
Product Family B200 M3
Operating System Language No
Cache 25 MB
64-bit Processing Yes
QuickPath Interconnect 8 GT/s
Hyper-Threading Yes
Network (RJ-45) Yes
Maximum Turbo Speed 3.60 GHz
Memory Standard DDR3-1866/PC3-14900
