UCS-E160S-M3/K9 Technical Specifications

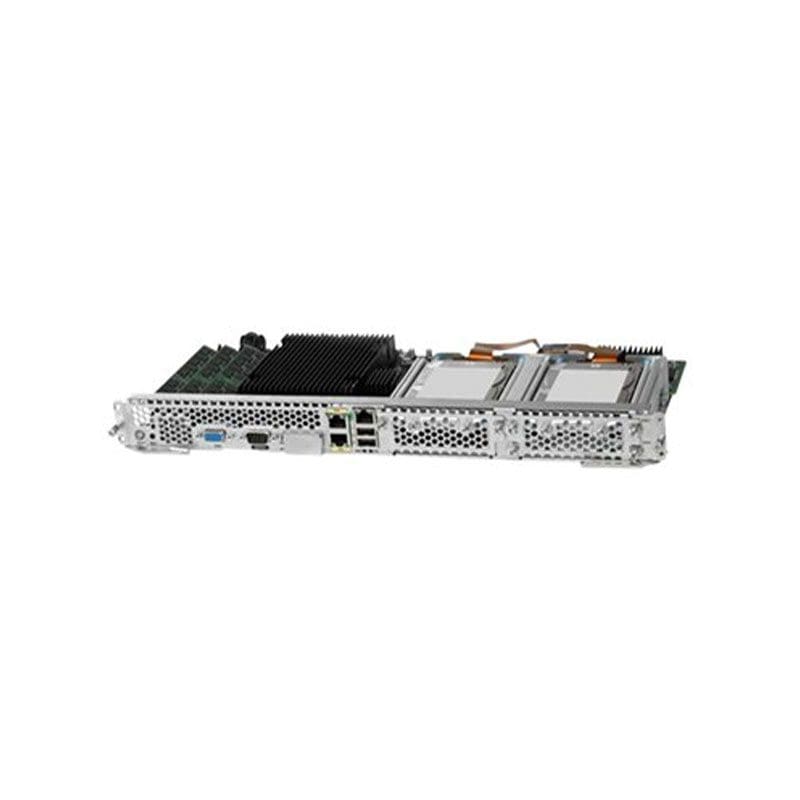

Cisco UCS E160S M3 – blade – Xeon D-1528 1.9 GHz
Cache Memory
Installed Size :9 MB
Installed Size :9
Per Processor Size :9 MB
Per Processor Size :9
Type :L3 cache
Chassis
Form Factor :Blade
Hot-Swap Bays Qty :2 Bays
Manufacturer Form Factor :Blade Server
Server Storage Bays :Hot-swap
Server Swappable Drive Interface :SATA/SAS
Dimensions & Weight
Depth :7.5 in
Height :1.6 in
Weight :2.43 lbs
Width :7.4 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 85%
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Expansion Bays
Type :Hot-swap
Expansion Slots
Type :CPU
Type :DIMM 288-pin
Hard Drive
Type :No HDD
Header
Brand :Cisco
Compatibility :PC
Manufacturer :CISCO DS HARDWARE DIRECT
Series: E160
Model :E160S M3
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Connector Type :RJ-45
Qty :2
Type :LAN (10Gigabit Ethernet)
Location :2 internal
Type :LAN (Gigabit Ethernet)
Qty :1
Type :USB
Type :KVM
Miscellaneous
Color Category :Silver
Compliant Standards :AS/NZS 60950-1, AS/NZS CISPR22:2004 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS13438:2006, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1 Second Edition, UL 60950-1 Second Edition, VCCI V-3
Modem
Type :None
Networking
Data Link Protocol :10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Ports :2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet
Remote Management Controller :Emulex Pilot 3 iBMC
Remote Management Protocol :CLI, HTTP, IPMI 2.0
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
