UCS-C260M2-VCD2 Technical Specifications

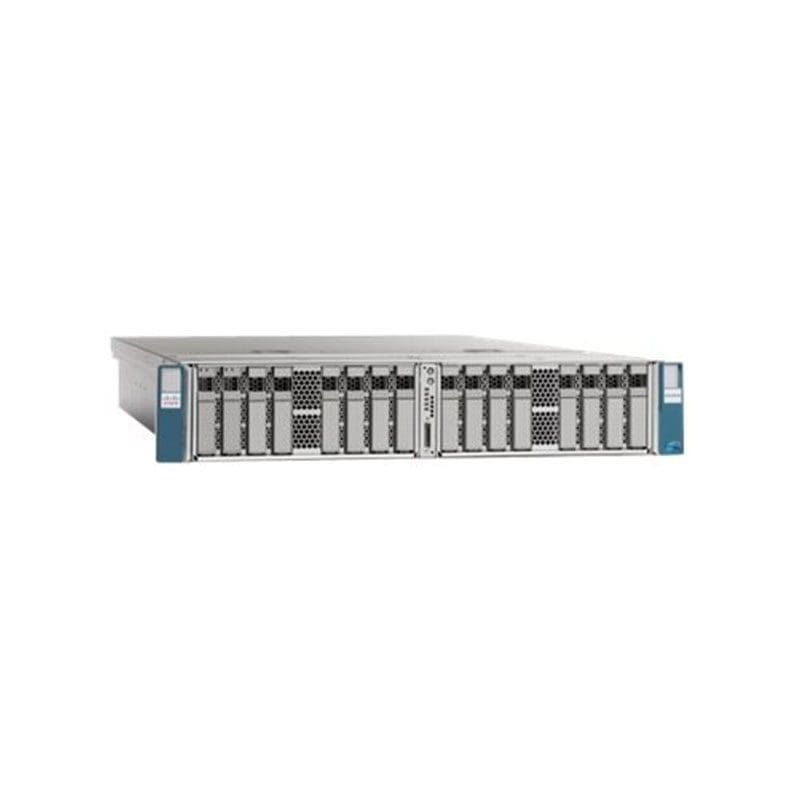

Cisco UCS C260 M2 Rack-Mount Server Rack-Mountable
Bay Provided
Form Factor :2.5″ SFF
Free Qty :0
Total Qty : 16 Bays
Cable
Connectivity Details Type :Serial Attached SCSI (SAS) cable
Cable Details
Qty :2
Cache Memory
Installed Size :60 MB
Installed Size :60
Per Processor Size :30 MB
Per Processor Size :30
Type :L3 cache
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :16 Bays
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Dimensions & Weight
Depth :31.5 in
Height :3.5 in
Weight :91.93 lbs
Width :17.6 in
Display
Type :None.
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Size :Half-length, full-height
Type :PCIe 2.0 x16
Size :Half-length, low-profile
Type :PCIe 2.0 x8
Slot Comments :X4 mode
Type :PCIe 2.0 x4
Type :CPU
Type :Memory
Hard Drive
Installed Qty :16
Interface Class :Serial Attached SCSI
Removable :Hot-swap
Spindle Speed :10000 rpm
Type :HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :C260 M2 Rack-Mount Server
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Qty :1
Type :Serial
Qty :2
Type :Management (NIC)
Qty :4
Type :USB 2.0
Qty :6
Type :LAN (Gigabit Ethernet)
Type :VGA
Mainboard
Chipset Type :Intel 7500
Processor Socket :LGA1567 Socket
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, BSMI CNS 14336, CAN/CSA-C22.2 No. 60950-1, CB, CCC, CISPR 22 Class A, CISPR 24, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, GOST, ICES-003 Class A, IEC 60950-1, SABS, SASO, UL 60950-1, VCCI Class A ITE
Height (Rack Units) :2
Included Accessories :2 x CPU Heatsink, Rack rail kit, RAID Battery Backup Unit
Modem
Type :None
Networking
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :Intel Gigabit ET Quad Port Server Adapter
Ethernet Ports :6 x Gigabit Ethernet
Form Factor :Plug-in card
Remote Management Controller :ServerEngines Pilot II
Remote Management Protocol :CLI, IPMI 2.0
Type :Network adapter
