UCS-B230M2-VCDL1 Technical Specifications

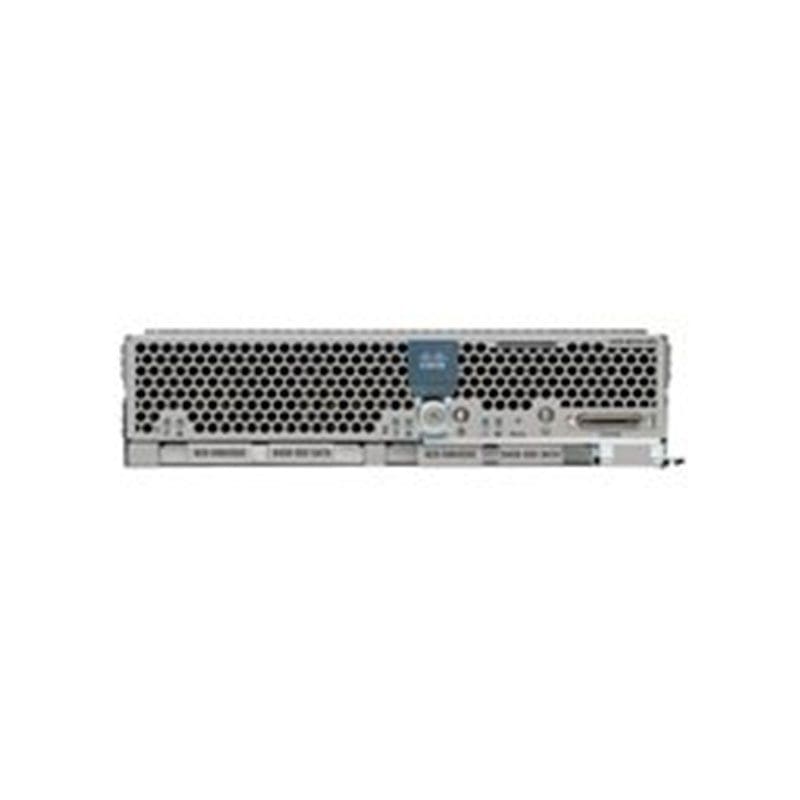

Cisco UCS B230 M2 Blade Server – blade
Bay Provided
Form Factor :2.5″
Free Qty :2
Total Qty :2
Cache Memory
Installed Size :60 MB
Installed Size :60
Per Processor Size :30 MB
Per Processor Size :30
Type :L3 cache
Chassis
Form Factor :Blade Server
Hot-Swap Bays Qty :2 Bays
Manufacturer Form Factor :Blade Server
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Dimensions & Weight
Depth :24.4 in
Height :2 in
Width :8 in
Display
Type :None.
Type :None.
Environmental Parameters
Humidity Range Operating :5 – 93% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :50 °F
Expansion Bays
Form Factor (metric) :6.4 cm
Type :Hot-swap
Expansion Slots
Type :CPU
Type :DIMM 240-pin
Type :Expansion slot
Hard Drive
Type :No HDD
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :B230 M2 Blade Server
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Qty :1
Type :KVM
Mainboard
Chipset Type :Intel 7500
Processor Socket :LGA1567 Socket
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EMC, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, UL 60950-1, VCCI Class A ITE
Included Accessories :2 x CPU Heatsink
Networking
Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ae, IEEE 802.3x
Data Link Protocol :10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE)
Ethernet Controller(s) :Cisco UCS M81KR Virtual Interface Card
Form Factor :Plug-in module
Type :Network adapter
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Printer
Type :None

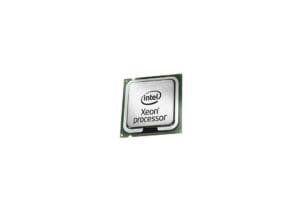

Processor
64-bit Computing :Yes
Clock Speed :2.4 GHz
Installed Qty :2
Manufacturer :Intel
Max Supported Qty :2
Max Turbo Speed :2.8 GHz
Number of Cores :10-core
Processor Main Features :Hyper-Threading Technology, Intel Execute Disable Bit, Intel Turbo Boost Technology, Intel Virtualization Technology
Processor Number :E7-2870
Server Scalability :2-way
Type :Xeon
RAM
Configuration Features :16 x 8 GB
Empty Slots :16
Features :Dual bank
Form Factor :DIMM 240-pin
Installed Size :128 MB
Installed Size :128
Max Supported Size :512 GB
Max Supported Size :512
Memory Specification Compliance :PC3-10600
Memory Speed :1333 MHz
Rated Memory Speed :1333 MHz
Slots Qty :32
Technology :DDR3 SDRAM
32 DDR3 Slots
