UAP-AC-SHD Technical Specification

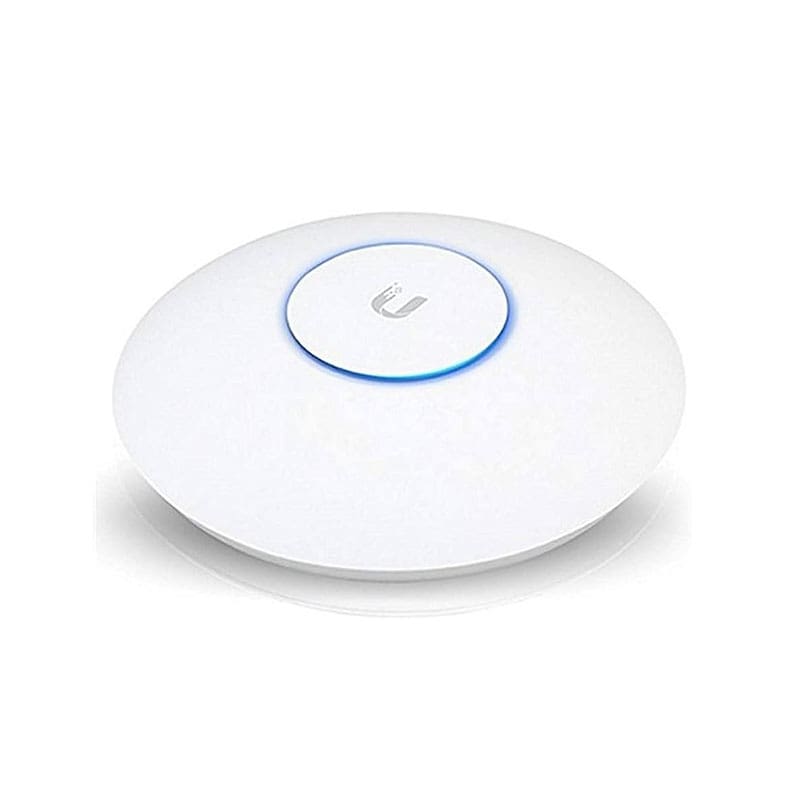

Ubiquiti AC SHD Wave 2 Dual Band Wireless Access Point
Manufacturer: Ubiquiti
Dimensions: Ø220 x 48.1 mm (Ø8.7 x 1.9″)
Weight: Without mount: 700 g (1.5 lb)
With mount: 830 g (1.8 lb)
Hardware
Networking interface: (2) GbE RJ45 ports
Power method: PoE+
Power supply: UniFi PoE Switch*
*5-packs do not come with PoE adapters.
Supported voltage range 44—57 VDC
Max. power consumption: 20W
Max. TX power
2.4 GHz: 25 dBm
5 GHz: 25 dBm
MIMO
2.4 GHz: 4 x 4
5 GHz: 4 x 4
Throughput rate
2.4 GHz: 800 Mbps
5 GHz: 1733 Mbps
Antenna gain
2.4 GHz: 6 dBi
5 GHz: 6 dBi
Button: Factory reset
Mounting: Wall/ceiling (Included)
Ambient operating temperature: -10 to 70° C (14 to 158° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC, cULus
