UA-G2-Pro-Black Technical Specifications

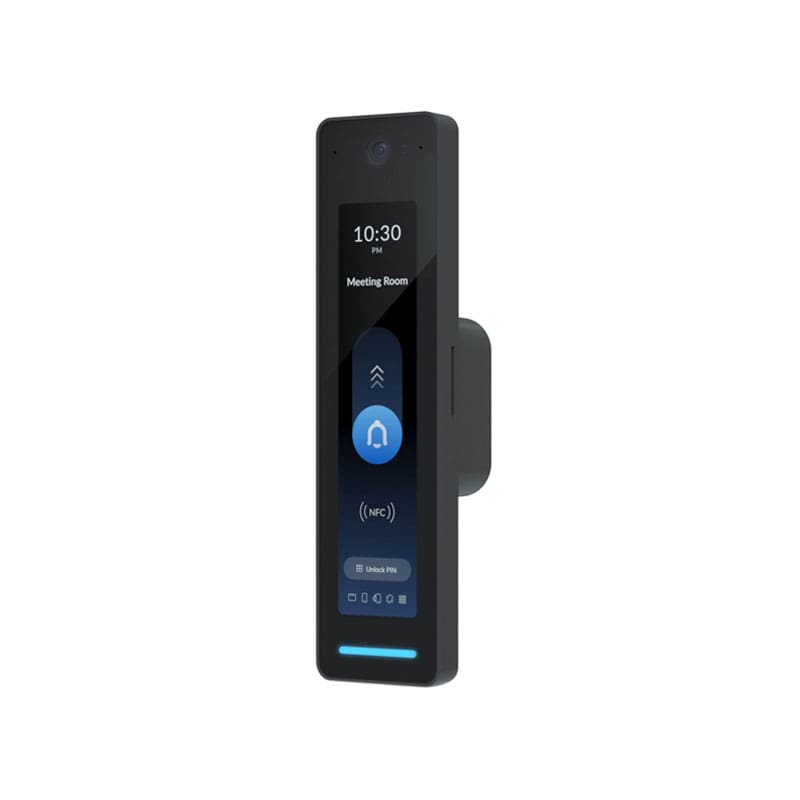

Ubiquiti UniFi G2 Reader Pro NFC Access Card Reader
Brand: Ubiquiti Networks
Manufacturer: Ubiquiti Networks
Product type: Card Reader
Dimensions 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6″)
Weight 136 g (4.8 oz)
Enclosure material Polycarbonate, glass
Mount material Aluminum alloy
Mounting Wall, gang box
Weatherproofing IP55
Hardware
Networking interface (1) GbE RJ45 port
Connectivity BLE 4.2
NFC
Power method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range 48V DC
Max. power consumption 6W
ESD/EMP protection Air: ±15kV, contact: ±8kV
Sensor Proximity sensor
Camera 4000 x 3000, 12 MP, 30 FPS
View angle H: 96.67°, V: 123.15°, D: 153.11°
Microphone Yes
Speaker (1) 4 ohm, 1.5W
LEDs R/G/B/W
Flash
Button (1) Factory-reset
NFC frequency 13.56 MHz
NFC read range < 30 mm
NFC standards ISO 14443A, 14443B, 15693
NFC technology NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire
Operating environment Outdoor use
