U6-IW-US Technical Specifications

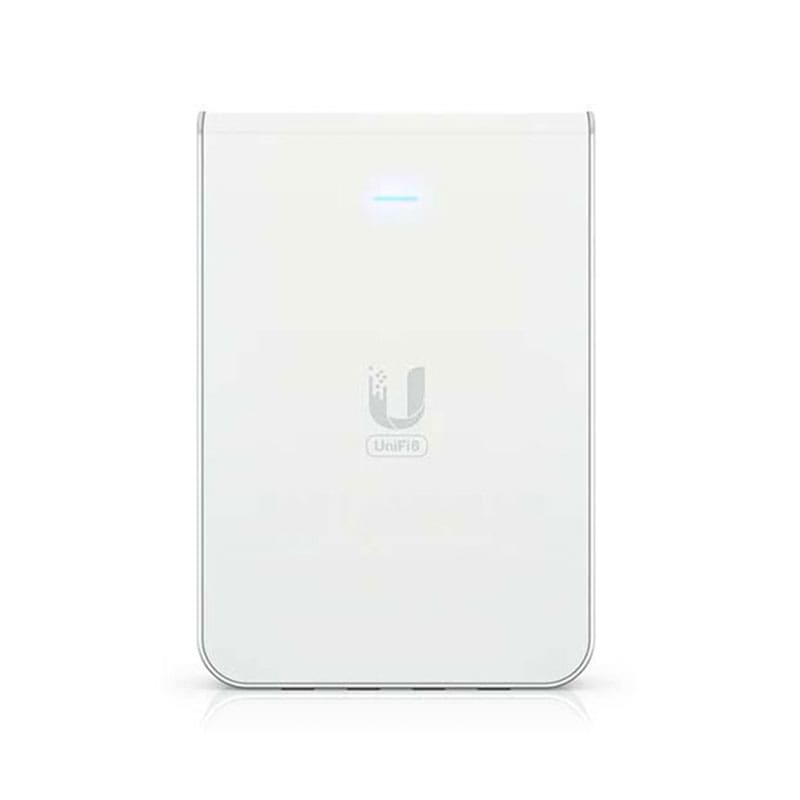

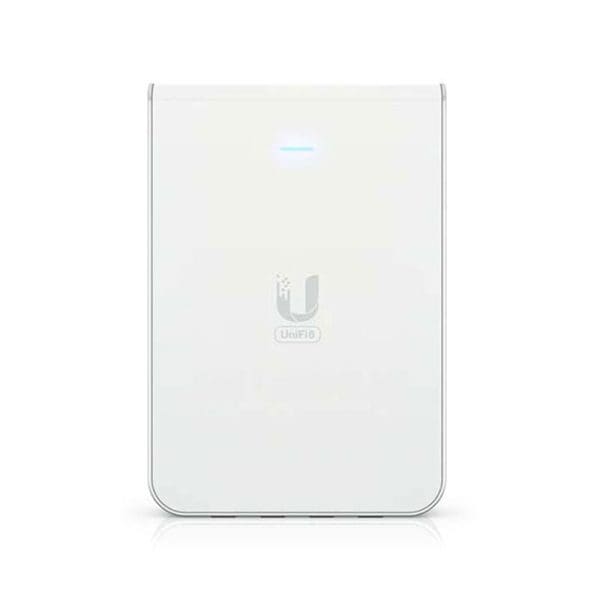

Ubiquiti UniFi 6 – wireless access point – Wi-Fi 6, Wi-Fi 6
Brand Ubiquiti
Product Line Ubiquiti UniFi
Model 6
Manufacturer Ubiquiti
Network & Communication
Compliant Standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q
Connectivity Technology
Wireless
Data Link Protocols
802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Features
2×2 MU-MIMO technology, 4×4 MU-MIMO technology, Advanced QoS, Aluminum housing, Guest Isolation, Plastic housing, Reset button, VLAN support, Zero-wait DFS
Form Factor
In-wall mountable
Network Band
2.4 GHz, 5 GHz
Power Over Ethernet (PoE) PoE+
Product Type Wireless access point
Wireless LAN 802.11a/b/g/n/ac/ax
Connectivity
Interface Provided
1 x 1000Base-T (PoE input) – RJ-45, 1 x 1000Base-T (PoE output) – RJ-45, 3 x 1000Base-T – RJ-45
Power
Required Voltage DC 44 – 57 volt
Technical Information
Antenna Form Factor
Internal Encryption
WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK, WPA-Enterprise, WPA-PSK
Internet of Things (IoT) Compatible
Yes Max Operating Temperature
140 degree Fahrenheit
Min Operating Temperature -22 degree Fahrenheit
Operating Humidity 5 – 95% (non-condensing)
Product Information
Authentication Method
Basic Service Set Identifier (BSSID)
Capacity
BSSIDs per radio: 8, Number of concurrent clients: 300+
Country
United States
IoT Communications Technology
Bluetooth Low Energy (LE)
Packaged Quantity 1
Service Activation No
Network Device
Aggregate data rate: 5.3 Gbps, Maximum data rate (2.4 GHz): 573.5 Mbps, Maximum data rate (5 GHz): 4.8 Gbps
Included Items
Included Accessories
Wall mounting kit
Dimensions & Weight
Height 5.5 inch
Weight 16.22 ounce
Width 3.8 inch
Depth 1.2 inch
