U6-Enterprise-IW Technical Specifications

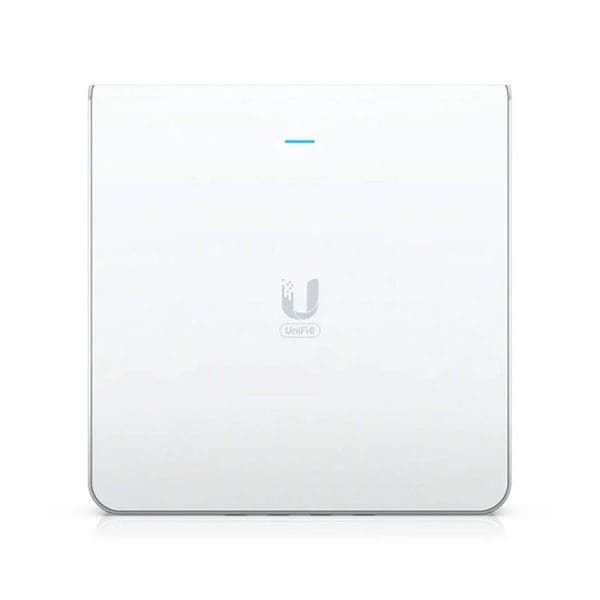

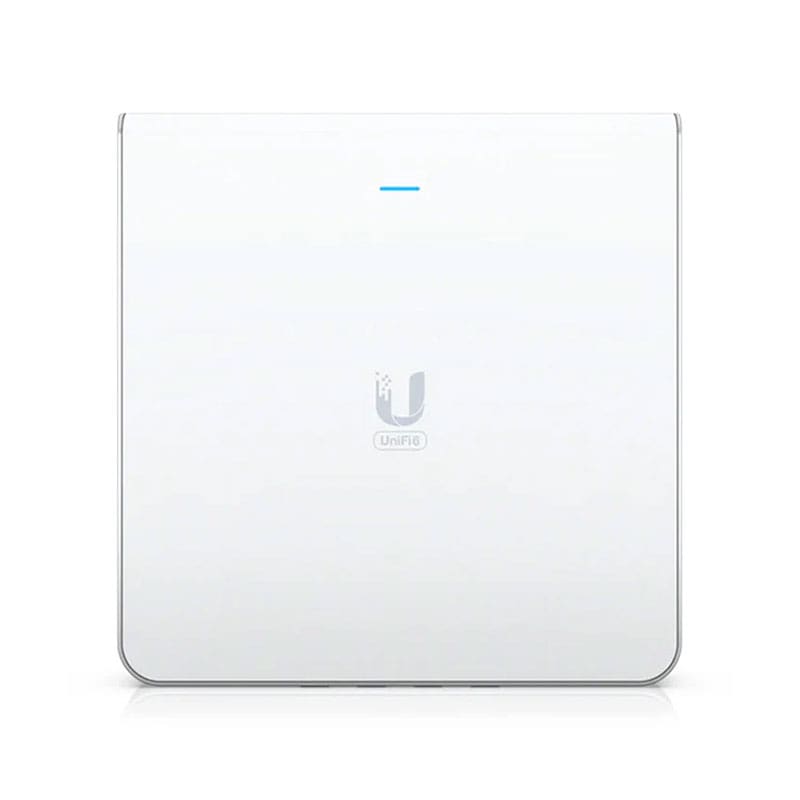

Ubiquiti U6 Enterprise In-Wall Wi-Fi 6E Access Point
Brand: Ubiquiti
Manufacturer: Ubiquiti
Dimensions: 159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3″)
Weight: 884 g (1.9 lb)
Enclosure material: Polycarbonate, aluminum
Mount material: Aluminum
Hardware
Networking interface: (1) Data in: 1/2.5 GbE RJ45 port
(4) Data out: GbE RJ45 ports
Management interface: Ethernet
Bluetooth:
PoE interface (1) PoE+ input
(1) PoE output
Power method: PoE+
PoE++ (Required for PoE output)
Power supply: UniFi PoE switch
Max. power consumption: 21W (Excluding PoE output)
Max. PoE wattage per port by PSE: 15.4W
LED: White/blue
Button: Factory reset
Mounting: Wall (Included)
Ambient operating temperature: -30 to 60° C (-22 to 140° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Software
WiFi standards: 802.11a/b/g/n/ac/ax (WiFi 6/6E)
Wireless security protocols: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 600+
Zero-wait DFS: Yes
