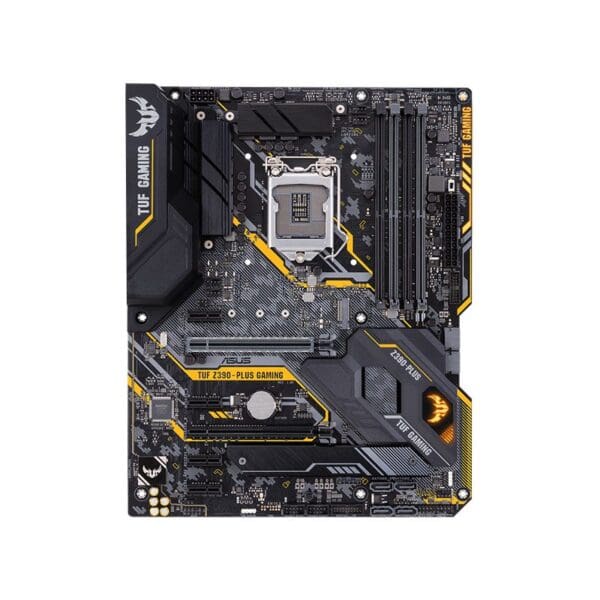

Refurbished TUF-Z390-PLUS-GAMING Technical Specifications
(WI-FI) ASUS LGA 1151 (300 Series) Intel Z390 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard
Model
Brand
ASUS
Series
TUF
Model
Z390-Plus Gaming (Wi-Fi)
Supported CPU
CPU Socket Type
LGA 1151 (300 Series)
CPU Type
Intel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors
Supported CPU Technologies
Supports Intel Turbo Boost Technology 3.0
* The Intel Turbo Boost Technology 3.0 Support Depends on the CPU types.
Chipsets
Chipset
Intel Z390
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor – Intel UHD Graphics support
Multi-VGA output support: HDMI/DisplayPort ports
– Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
– Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Memory
Number of Memory Slots
4×288pin
Memory Standard
DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4)
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *
* The PCIe x1_3, PCIe x1_4 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.
* For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
PCI Express x1
4 x PCIe 3.0/2.0 x1 *
* The PCIe x1_3, PCIe x1_4 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.
Storage Devices
SATA 6Gb/s
6 x SATA 6Gb/s port(s), gray*
* When a device is installed on the M.2_2 socket, SATA_5/6 port cannot be used.
M.2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)*
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)**
* When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used.
** When a device is installed on the M.2_2 socket, SATA_5/6 port cannot be used.
Intel Optane Ready
Yes
SATA RAID
0/1/5/10
