TUF 3-RX5700XT-O8G-EVO-GAMING Technical Specifications

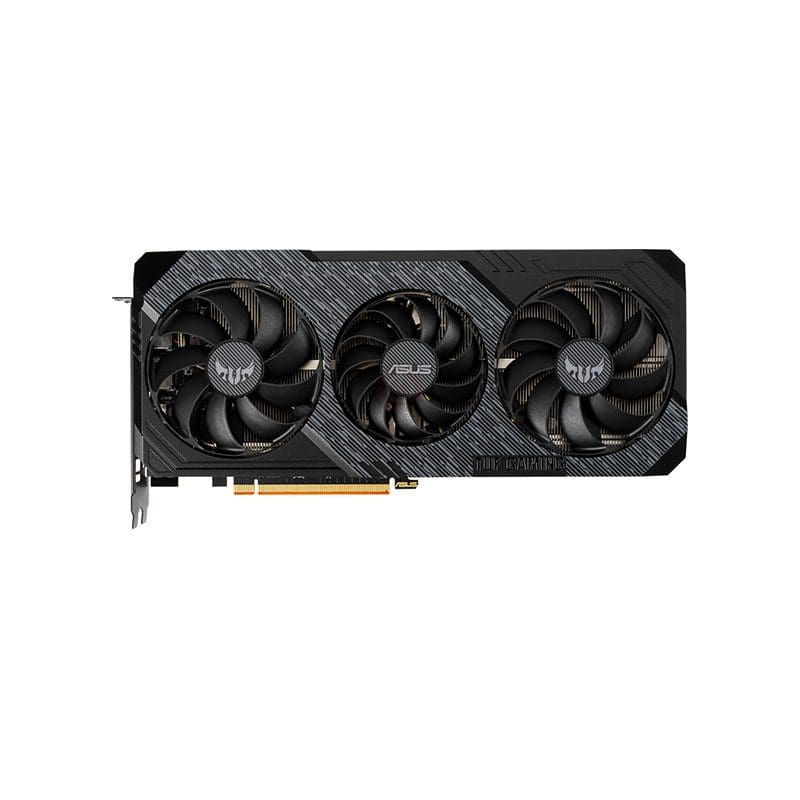

ASUS TUF Gaming X3 Radeon RX 5700 XT EVO OC Graphics Card
GPU Model AMD Radeon RX 5700 XT
Stream Processors 2560
Boost Clock Speed Gaming Mode: 1905 MHz
OC Mode: 1980 MHz
Base Clock Speed Gaming Mode: 1795 MHz
OC Mode: 1870 MHz
Interface PCI Express 4.0 x16
Supported APIs DirectX: 12
OpenGL: 4.5
Vulkan
Memory
Memory Speed 14 Gb/s
Memory Configuration 8 GB
Memory Interface GDDR6
Memory Interface Width 256-Bit
Memory Bandwidth 448 GB/s
Display Support
Display Connectors 3 x DisplayPort 1.4
1 x HDMI 2.0b
Maximum Digital Resolution 7680 x 4320 @ 60 Hz
Power Requirements
PCI Power Connectors 1 x 8-Pin
1 x 6-Pin
Recommended System Power Requirement 600 W
Dimensions
Height 5.06″ / 128.5 mm
Length 11.13″ / 282.6 mm
Width 2.75-Slot
