TS512GMTE110S Technical Specifications

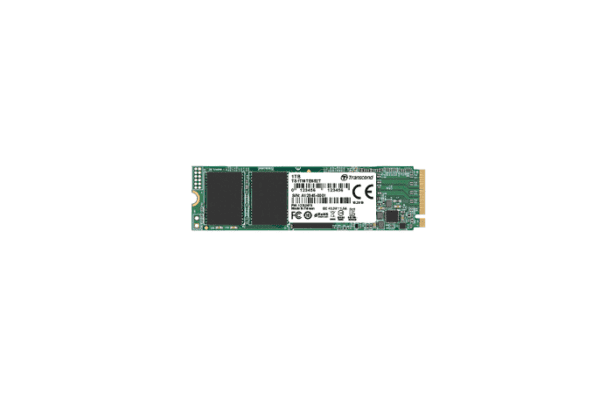

Transcend 110S solid state drive 512GB PCI Express 3.0 x4 (NVMe)
Brand :Transcend
Product Line :Transcend
Model :110S
Packaged Quantity :1
Storage
Type :Solid state drive
Hard Drive
Hard Drive Type :Internal hard drive
Form Factor :M.2 2280
Form Factor (metric) :M.2 2280
Form Factor (Short) :M.2
Form Factor (Short) (metric) :M.2
Storage Interface :PCI Express 3.0 x4 (NVMe)
Interface :PCI Express 3.0 x4 (NVMe)
Capacity :512 GB
NAND Flash Memory Type :3D triple-level cell (TLC)
Internal Data Rate :1800 MBps
Internal Data Rate (Write) :1500 MBps
Features :Intelligent SLC Caching, Low-Density Parity Check, NVM Express (NVMe) 1.3, Thermal throttling, TRIM support
Compliant Standards :S.M.A.R.T.
Interface Provided
Interfaces :1 x PCI Express 3.0 x4 (NVMe) – M.2 Card
Bay Required
Compatible Bay :M.2 2280
System Requirements
OS Required :Linux Kernel 2.6.31 or later, Microsoft Windows 7 / 8 / 10
Miscellaneous
Compliant Standards :BSMI, FCC
Dimensions & Weight
Width :3.1 inch
Depth :0.9 inch
Height :0.1 inch
Weight :0.28 ounce
