TS1TMSA452T2 Technical Specifications

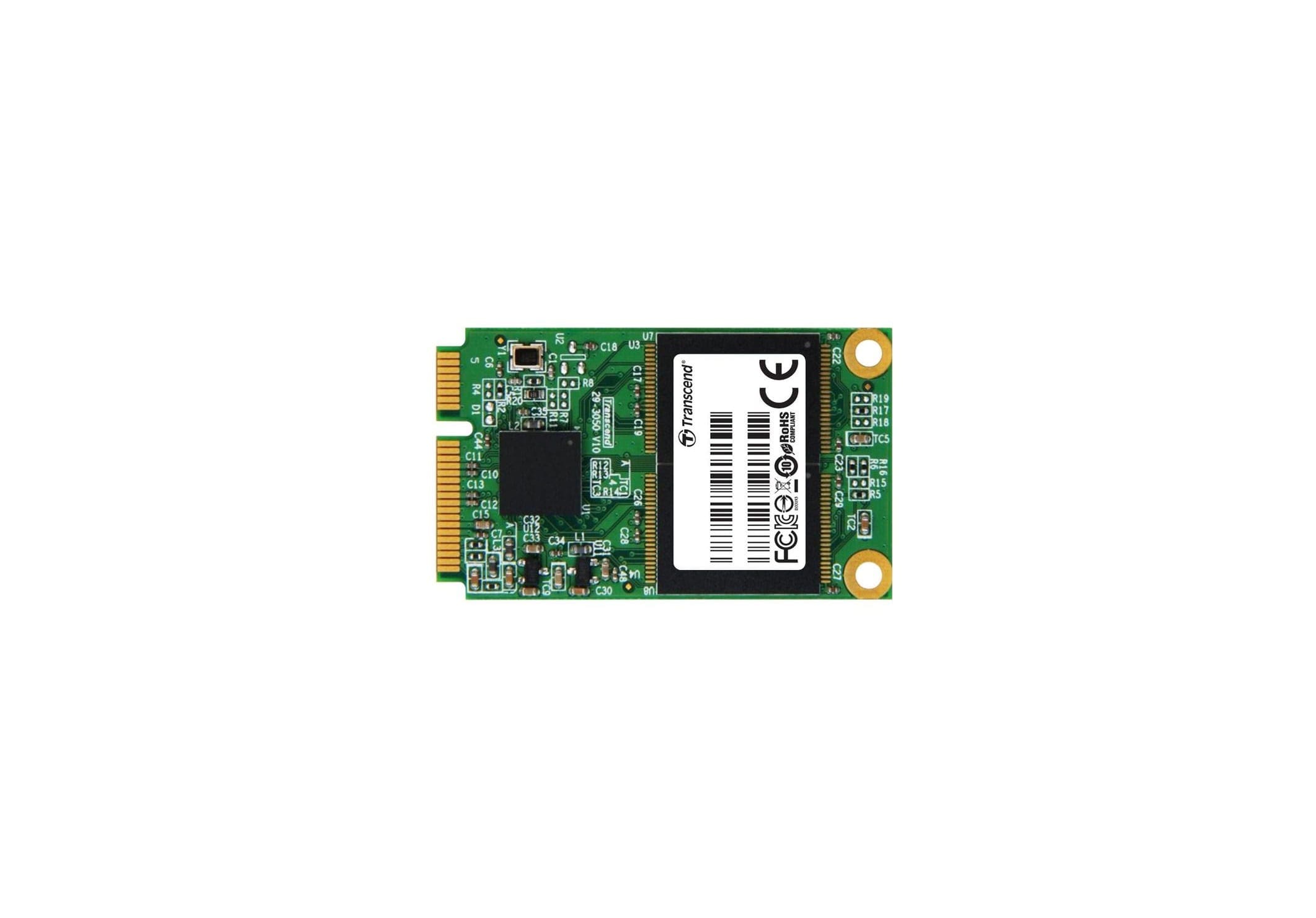

Transcend MSA452T2 solid state drive 1TB SATA 6Gb/s
Brand :Transcend
Product Line :Transcend
Model :MSA452T2
Packaged Quantity :1
Storage
Type :Solid state drive
Hard Drive
Hard Drive Type :Internal hard drive
Form Factor :mSATA
Form Factor (metric) :mSATA
Form Factor (Short) :mSATA
Form Factor (Short) (metric) :mSATA
Storage Interface :Serial ATA-600
Interface :Serial ATA-600
Capacity :1 TB
NAND Flash Memory Type :3D triple-level cell (TLC)
Data Transfer Rate :600 MBps
Internal Data Rate :560 MBps
Internal Data Rate (Write) :520 MBps
Maximum 4KB Random Read :95000 IOPS
Maximum 4KB Random Write :85000 IOPS
Drive Writes Per Day (DWPD) :1.61
SSD Endurance :1760 TB
Features :3K P/E cycles (Program/Erase cycles), Advanced Garbage Collection, Advanced Global Wear Leveling, Block management, Corner Bond technology, DevSleep mode, DRAM cache, Dynamic thermal throttling, Error Correction Code (ECC), PCB gold finger, Power Saving Mode, Security Command support
Compliant Standards :JEDEC MO-300, S.M.A.R.T.
Interface Provided
Interfaces :1 x SATA 6 Gb/s – 52 pin mini-SATA
Bay Required
Compatible Bay :mSATA
Power Consumption
Power Consumption :0.4 Watt (sleep), 2.4 Watt (active)
Miscellaneous
MTBF :3,000,000 Hours
Compliant Standards :BSMI, FCC, RoHS2
Dimensions & Weight
Width :1.2 inch
Depth :2 inch
Height :0.2 inch
Weight :0.28 ounce
