TS128GMTE510T Technical Specifications

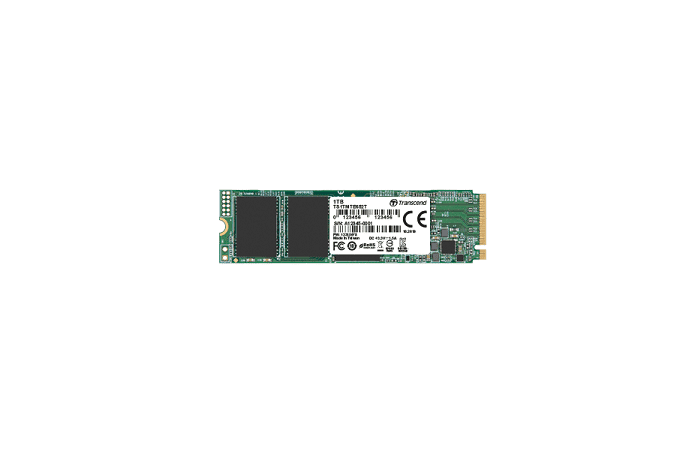

Transcend MTE510T solid state drive 128GB PCI Express 3.0 x4 (NVMe)
Brand :Transcend
Product Line :Transcend
Model :MTE510T
Packaged Quantity :1
Storage
Type :Solid state drive
Hard Drive
Hard Drive Type :Internal hard drive
Form Factor :M.2 2280 (double-sided)
Form Factor (metric) :M.2 2280 (double-sided)
Form Factor (Short) :M.2
Form Factor (Short) (metric) :M.2
Storage Interface :PCI Express 3.0 x4 (NVMe)
Interface :PCI Express 3.0 x4 (NVMe)
Capacity :128 GB
NAND Flash Memory Type :3D triple-level cell (TLC)
Internal Data Rate :1800 MBps
Internal Data Rate (Write) :1500 MBps
4KB Random Read :180000 IOPS
4KB Random Write :150000 IOPS
Drive Writes Per Day (DWPD) :0.33
SSD Endurance :538 TB
Features :64-layer 3D NAND technology, LDPC error correction, SLC cache, Thermal throttling
Interface Provided
Interfaces :1 x PCI Express 3.0 x4 (NVMe) – M.2 Card
Bay Required
Compatible Bay :M.2 2280 (double-sided)
Power Consumption
Power Consumption :0.56 Watt (sleep), 4.36 Watt (active)
Miscellaneous
MTBF :1,500,000 Hours
Compliant Standards :BSMI, FCC, RoHS
Dimensions & Weight
Width :0.9 inch
Depth :3.1 inch
Height :0.1 inch
Weight :0.28 ounce
