TS128GMTE110S Technical Specifications

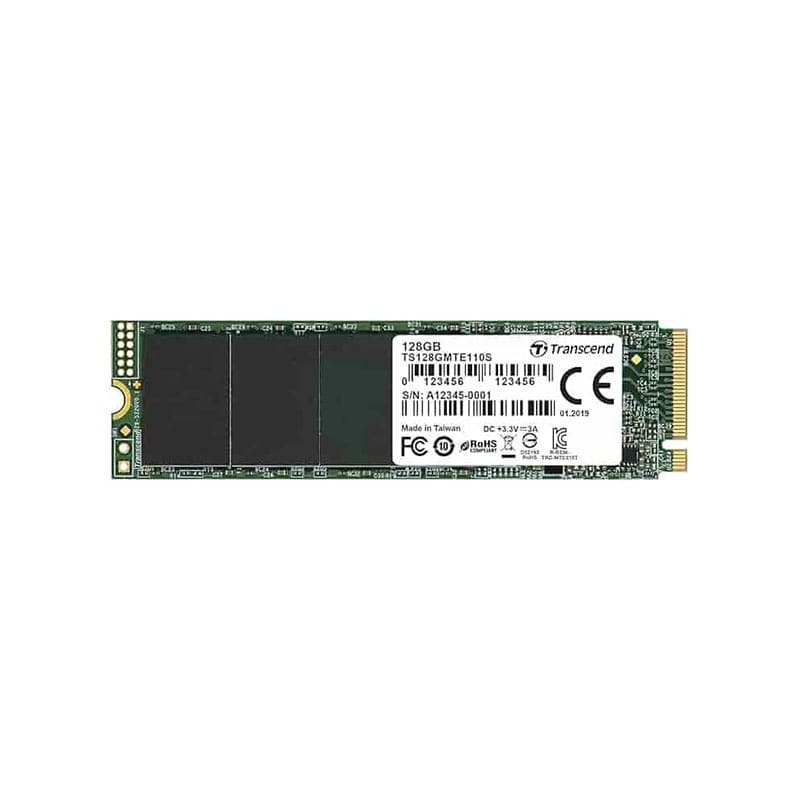

Transcend 110S Series 128GB TLC PCI Express 3.0 x4 Internal SSD
Brand Transcend
Product Line Transcend
Model 110S
Manufacturer TRANSCEND
Storage
Compliant Standards
S.M.A.R.T.
Form Factor (Short) M.2
Form Factor (Short) (metric) M.2
Hard Drive Capacity 128 GB
Hard Drive Features
Intelligent SLC Caching, Low-Density Parity Check, NVM Express (NVMe) 1.3, Thermal throttling, TRIM support
Hard Drive Type
Internal hard drive
HD Interface
PCI Express 3.0 x4 (NVMe)
Max Internal Data Transfer Rate 1800 MBps
Max Write Transfer Rate 1500 MBps
NAND Flash Memory Type
3D triple-level cell (TLC)
Storage Interface
PCI Express 3.0 x4 (NVMe)
Connectivity
Interface Provided
1 x PCI Express 3.0 x4 (NVMe) – M.2 Card
Technical Information
Compatible Bay M.2 2280
Hard Drive Form Factor M.2 2280
Hard Drive Form Factor (metric) M.2 2280
Max Operating Temperature
158 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Operating System Required
Linux Kernel 2.6.31 or later, Microsoft Windows 7 / 8 / 10
Product Information
Packaged Quantity 1
Product Type
Solid state drive
Dimensions & Weight
Height 0.1 inch
Weight 0.28 ounce
Width 3.1 inch
Depth 0.9 inch
