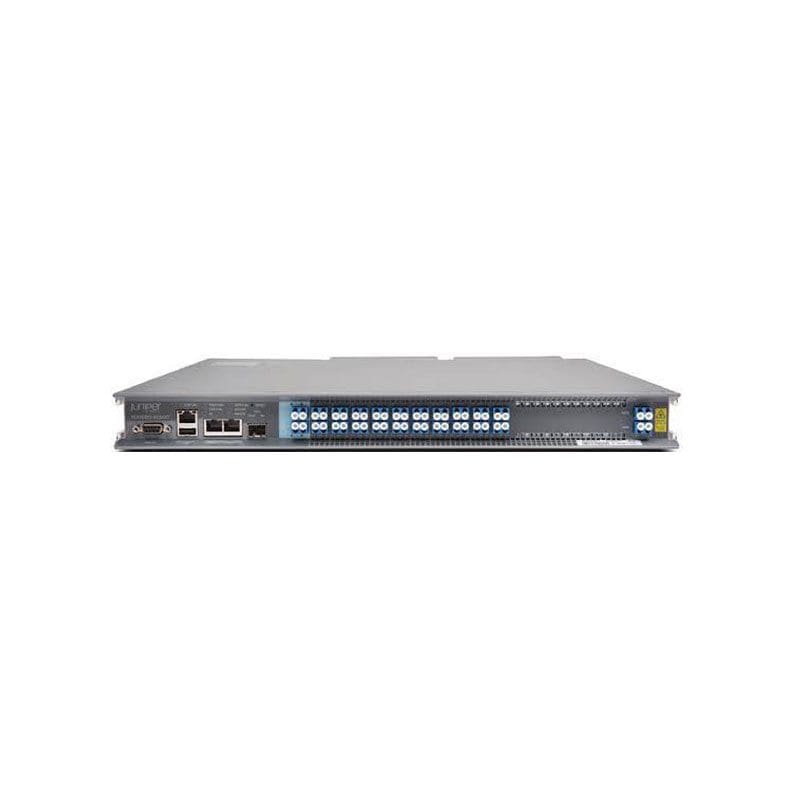

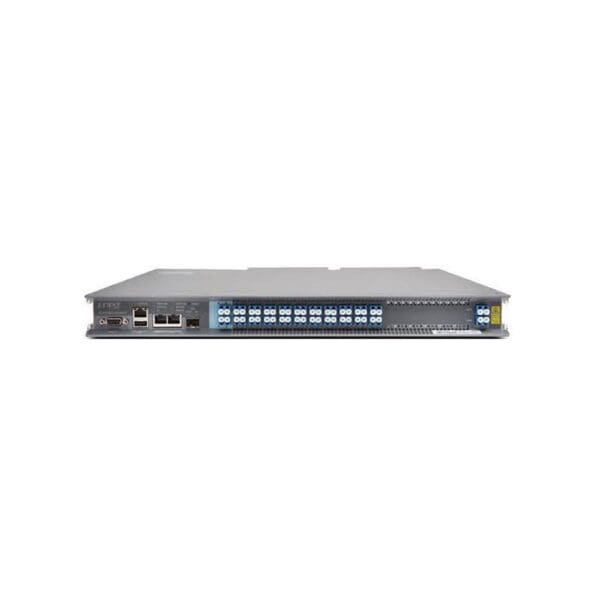

TCX1000-RDM20-AC Technical Specifications
Juniper TCX1000 20 Port AC ROADM System
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks Programmable ROADM
Model :TCX1000
Packaged Quantity :1
Networking
Type :Multiplexor
Form Factor :Rack-mountable
Ports Qty :20
Connectivity Technology :Wired
Max Transfer Distance (Optical) :3800 km, 2361 miles
Status Indicators :Minor, Critical, Fan, Status, Major, Power, Identify
Features :Optical Supervisory Channel (OSC), C-band, Erbium Doped Fiber Amplifier (EDFA), Reset button, Front to back airflow, 2 fans, Wavelength selective switch (WSS)
Interface Provided
Interfaces :1 x monitoring – LC, 20 x – LC, 1 x USB (management) – Type A, 1 x line input/output – LC, 2 x Ethernet – RJ-45, 1 x OSC input/output – SFP, 1 x serial – DB-9, 2 x OSC input/output – LC
Power Device
