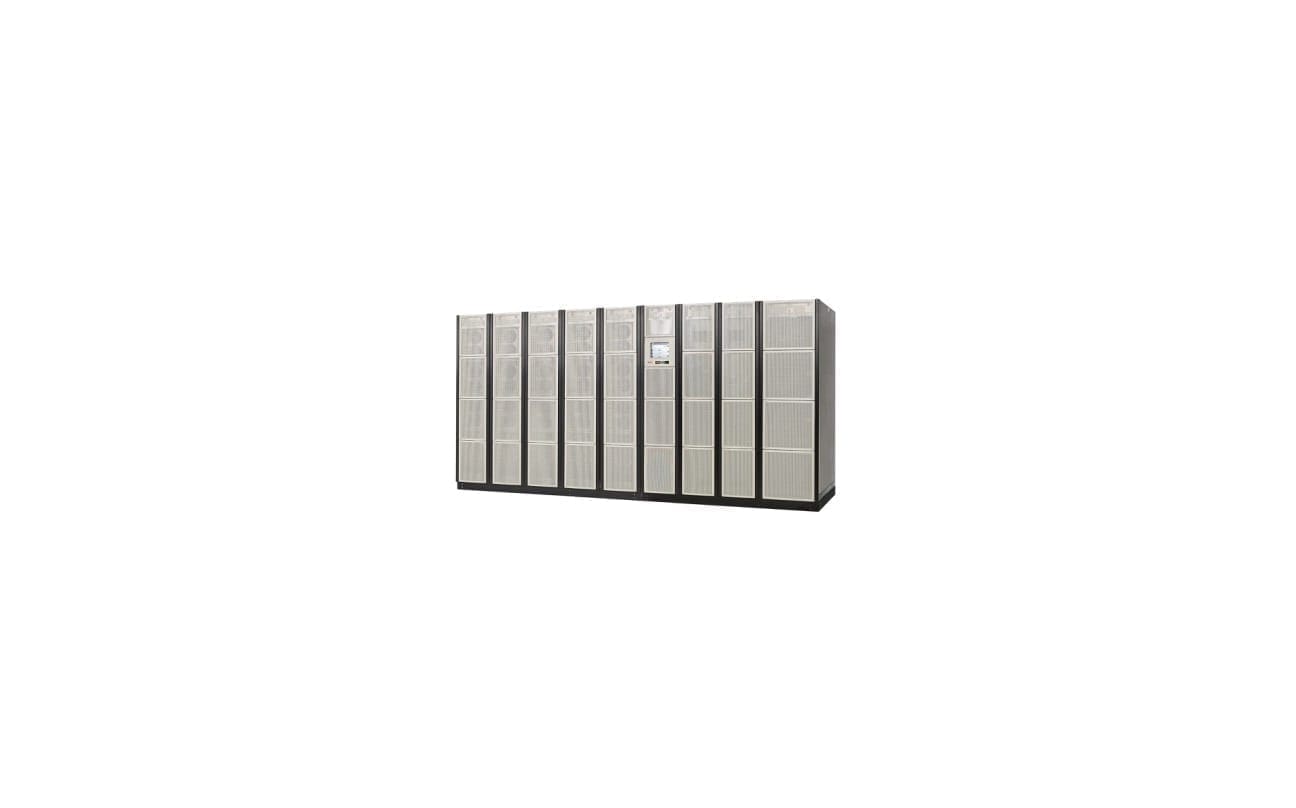

SYMF800KG-IP Technical Specifications
Symmetra MW 800kW IP Frame, 480V
Output
Max Configurable Power (Watts)
800.0kWatts / 800.0kVA
Output Voltage Note
—
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
60 Hz – programmable +/- 0.5 / 1 / 2 / 4 / 6 / 8%
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal
Load Crest Factor
Unlimited
Topology
Delta Conversion On-Line
Waveform type
Sine wave
Input
Input frequency
60 Hz – programmable +/- 0.5 / 1 / 2 / 4 / 6 / 8%
Input voltage range for main operations
408 – 552 (480)V
Input voltage adjustable range for mains operation
408 – 552 (480V)V
Number of Power Cords
1
Type of Input Protection Required
3-pole breaker
Maximum Short Circuit Withstand (Icw)
200.0kAmps
Input Power Factor at Full Load
0.99
Batteries & Runtime
Battery type
No internal battery – uses external battery system
Extendable Run Time
1
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
Contact Closure, DB-9 RS-232, RJ-45 10/100 Base-T, RS-485
Control panel
Touch Screen LCD User Interface
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes
Physical
Maximum Height
80.0inches (2032MM, 203.2CM)
Maximum Width
139.33inches (3539MM, 353.9CM)
Maximum Depth
42.0inches (1067MM, 106.7CM)
Net Weight
10121.43lbs. (4591.0KG)
Shipping Height
88.0inches (2235MM, 223.5CM)
Shipping Width
212.28inches (5392MM, 539.2CM)
Shipping Depth
50.4inches (1280MM, 128.0CM)
Color
Light grey (NCS 2703-G84Y)
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 %
Operating Elevation
0-3333ft (0-999.9meters)
Storage Temperature
-50 – 40 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
74.0dBA
Online thermal dissipation
84500.0BTU/hr
Protection Class
NEMA 1 with NEMA 12 optional
