SYH6K6RMT-TF3 Technical Specifications

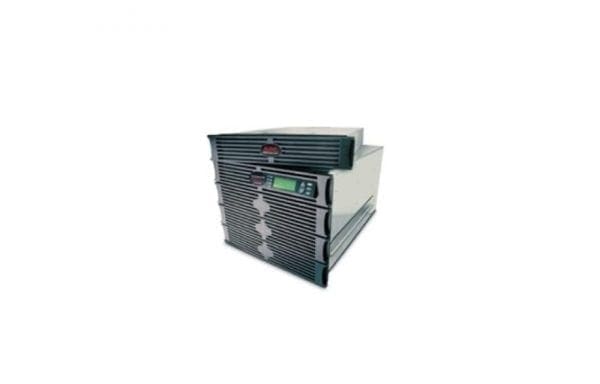

APC Symmetra RM 6kVA Scalable to 6kVA N+1 208/240V w/ 208 to 120V Step-Down Transformer (4) L5-20R
Manufacturer :APC
Brand :APC
Product Line :APC Symmetra RM
Model :6 kVA scalable to 6kVA N+1
Packaged Quantity :1
General
Subcategory :UPS
Product Type :Power array
Networking
Remote Management Interface :Ethernet
Remote Management Protocol :Telnet, SNMP, HTTP
Interface Provided
Interfaces :1 x management (Ethernet) – RJ-45, 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :Power cable 6 ft
Software
Type :APC PowerChute Symmetra Bundle
Power Device
Form Factor :Rack-mountable
Voltage Provided :AC 208/240 volt
Voltage Provided Margin :± 5%
Frequency Provided :57 – 63 hertz
UPS Output Waveform :Sinewave
Power Capacity (VA) :6000 volt ampere per kilogram 6000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 155 – 276 V
Frequency Required :50/60 hertz
Input Connector Type :Hardwire, Power NEMA L6-30
Input Connector Qty :2
Output Connector Type :Power NEMA L6-20, Power NEMA L5-20
Output Connector Qty :6
Circuit Protection :Circuit breaker
Power Output Connectors Details
Power Output Connectors Details :2 x power NEMA L6-20, 4 x power NEMA L5-20
Battery
Run Time (Up To) :12.3 minute (time unit)
Load Type :At full load
Run Time Details
Run Time (Up To) :12.3 min at full load
UPS
Batteries Qty :6
Supported Batteries Qty :6
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Compliant Standards :UL 1778, FCC Class A certified, CSA
Features :Audible alarm
Dimensions & Weight
Width :18.9 inch
Depth :28.7 inch
Height :17.3 inch
Weight :390.21 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
