SYA16K16P Technical Specifications

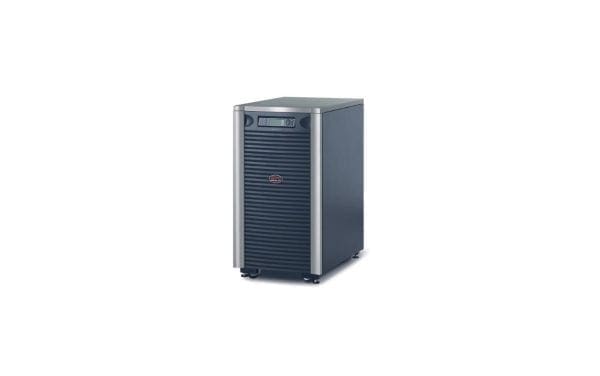

APC Symmetra LX 16kVA Scalable to 16kVA N+1 Tower, 208/240V
Manufacturer :APC
Brand :APC
Product Line :APC Symmetra LX
Model :16kVA Scalable to 16kVA N+1
Packaged Quantity :1
General
Subcategory :UPS
Product Type :Power array
Networking
Remote Management Interface :Ethernet 10/100
Remote Management Protocol :SNMP, HTTP
Expansion Slots
Expansion Slots :3 (total) / 2 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (Ethernet) – RJ-45, 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Software
Type :APC PowerChute Symmetra Bundle
Power Device
Form Factor :External
Voltage Provided :AC 120/208/240 volt
Voltage Provided Margin :± 5%
Frequency Provided :47 – 63 hertz
UPS Output Waveform :Sinewave
Power Capacity (VA) :16000 volt ampere per kilogram 16000VA
Voltage Required :AC 208/240 volt
Input Voltage Range :AC 155 – 276 V
Frequency Required :45 – 65 hertz
Input Connector Type :Hardwire
Input Connector Qty :1
Output Connector Type :Hardwire
Output Connector Qty :1
Power Output Connectors Details
Power Output Connectors Details :1 x hardwire
Battery
Run Time (Up To) :6 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Supported Battery
Technology :Lead acid
Run Time Details
Run Time (Up To) :6 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black, Silver
Color Category :Silver, Black
Compliant Standards :FCC Class A certified, UL 1778, CSA
Features :Emergency power off, Audible alarm, LCD display
Dimensions & Weight
Width :18.9 inch
Depth :28.7 inch
Height :37 inch
Weight :679.02 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
