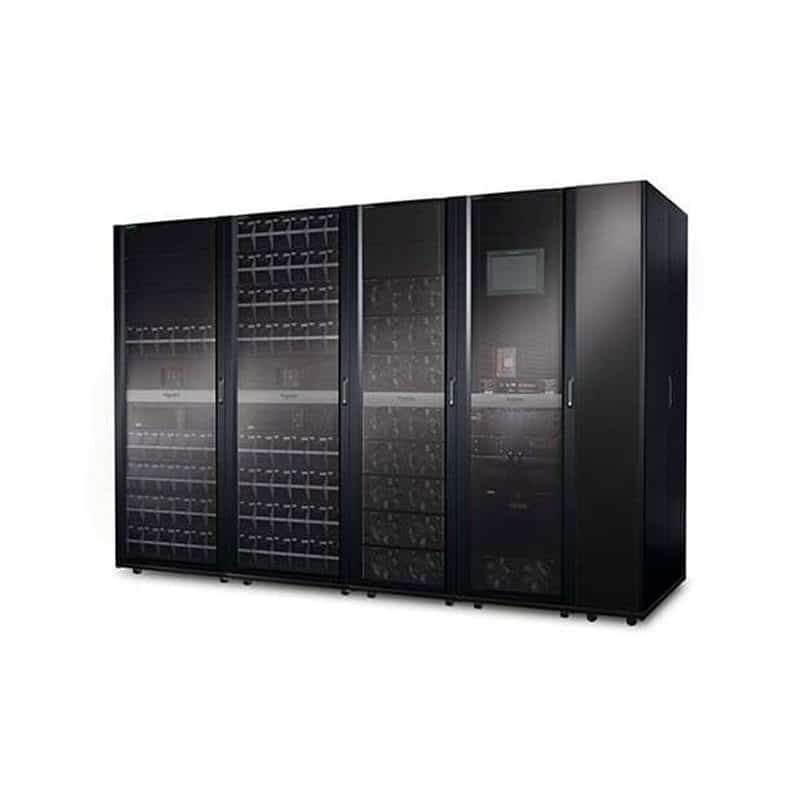

SY200K250DR-PD Technical Specifications
Symmetra PX 200kW Scalable to 250kW
Output
Max Configurable Power (Watts)
500.0kWatts / 500.0kVA
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50 Hz, 60 Hz
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
Other Output Voltages
415
Topology
Double Conversion Online
Waveform type
Sine wave
Overload Operation
10 minutes @ 125% and 30 seconds @ 150%
Output Voltage THD
< 2% for 0 to 100% linear load and < 6% for full non linear load
Output Voltage Tolerance
+/-1% static and +/- 5% at 100% load step
Transfer Time
2ms typical
Bypass
Built-in Maintenance Bypass, Built-in Static Bypass
Input
Input frequency
40 – 70 Hz (auto sensing)
Input voltage range for main operations
340 – 460 (400V), 408 – 552 (480)V
Input Total Harmonic Distortion
Less than 5% for full load
Type of Input Protection Required
3-pole breaker
Other Input Voltages
415
Maximum Short Circuit Withstand (Icw)
50.0kAmps
Input Power Factor at Full Load
0.99
Batteries & Runtime
Battery type
VRLA
Included Battery Modules
13
Typical recharge time
3.5hour(s)
Battery Slots Empty
18
RBC Quantity
6
Extendable Run Time
1
Battery Volt-Amp-Hour Capacity
67392
Extended Run Options
Symmetra-PX-200kW-Scalable-to-250kW-with-Right-Mounted-Maintenance-Bypass-and-Distribution
Efficiency in Battery Operation
96.5 %
Overload Operation
10 minutes @ 125% and 60 seconds @ 150%
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications & Management
Pre-Installed SmartSlot™ Cards
AP9635
Control panel
Touch Screen LCD User Interface
Emergency Power Off (EPO)
Optional
Available SmartSlot™ Interface Quantity
1
Physical
Maximum Height
78.39inches (1991MM, 199.1CM)
Maximum Width
122.05inches (3100MM, 310.0CM)
Maximum Depth
42.13inches (1070MM, 107.0CM)
Net Weight
8998.0lbs. (4090.0KG)
Shipping weight
9875.8lbs. (4489.0KG)
Shipping Height
84.65inches (2150MM, 215.0CM)
Shipping Width
161.81inches (4110MM, 411.0CM)
Shipping Depth
50.0inches (1270MM, 127.0CM)
