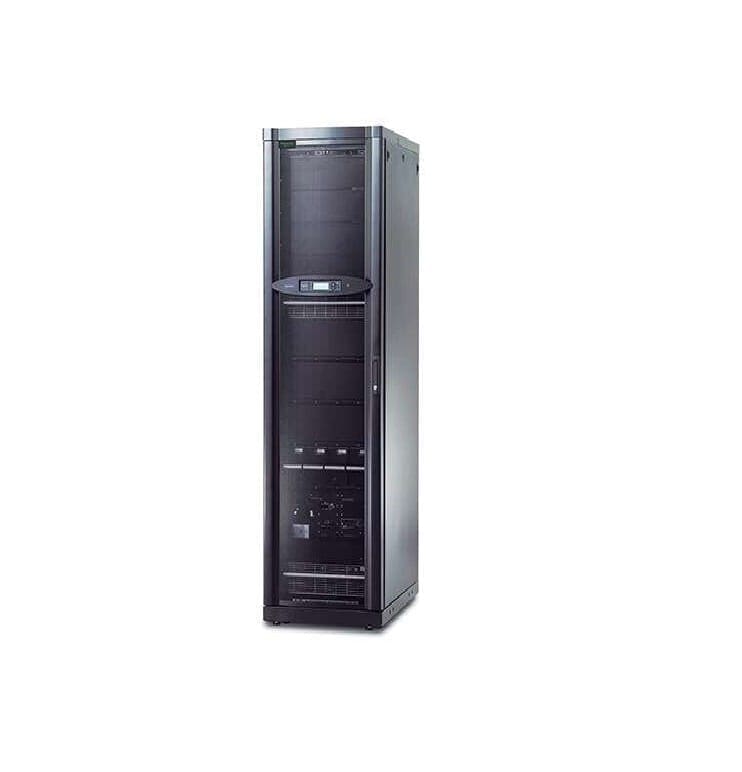

SY10K40F Technical Specifications
Symmetra PX 10kW Scalable to 40kW N+1, 208V
Output
Max Configurable Power (Watts)
40.0kWatts / 40.0kVA
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
57 – 63 Hz for 60 Hz nominal
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal
Topology
Double Conversion Online
Waveform type
Sine wave
Overload Operation
60 seconds @ 125% and 30 seconds @ 150%
Maximum Output Current
111
Output Voltage THD
< 2% for 0 to 100% linear load and < 5% for full non linear load
Output Voltage Tolerance
+/-1% static and +/- 5% at 100% load step
Bypass
Built-in Static Bypass
Input
Input frequency
50/60 Hz
Input voltage range for main operations
177 – 240V
Type of Input Protection Required
3-pole breaker
Maximum Short Circuit Withstand (Icw)
30.0kAmps
Input Power Factor at Full Load
0.99
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
1
Typical recharge time
2hour(s)
Nominal Battery Voltage
+/-192 V (split battery referenced to neutral)
Replacement Battery
SYBT4
Battery Slots Empty
3
RBC Quantity
1
DC Overcurrent Protection
125A
Extendable Run Time
1
Battery Volt-Amp-Hour Capacity
2764
Extended Run Options
Symmetra-PX-10kW-Scalable-to-40kW-N-1-208V
Efficiency in Battery Operation
94.0 %
Overload Operation
60 seconds@ 125% and 30 seconds at 150%
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
DB-9 RS-232, SmartSlot
Pre-Installed SmartSlot™ Cards
AP9630MPSY3
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Yes
Available SmartSlot™ Interface Quantity
2
Physical
Maximum Height
81.5inches (2070MM, 207.0CM)
Maximum Width
23.62inches (600MM, 60.0CM)
Maximum Depth
35.5inches (902MM, 90.2CM)
Net Weight
895.0lbs. (406.82KG)
Shipping weight
997.0lbs. (453.18KG)
Shipping Height
91.0inches (2311MM, 231.1CM)
Shipping Width
29.5inches (749MM, 74.9CM)
Shipping Depth
41.5inches (1054MM, 105.4CM)
Color
Black
