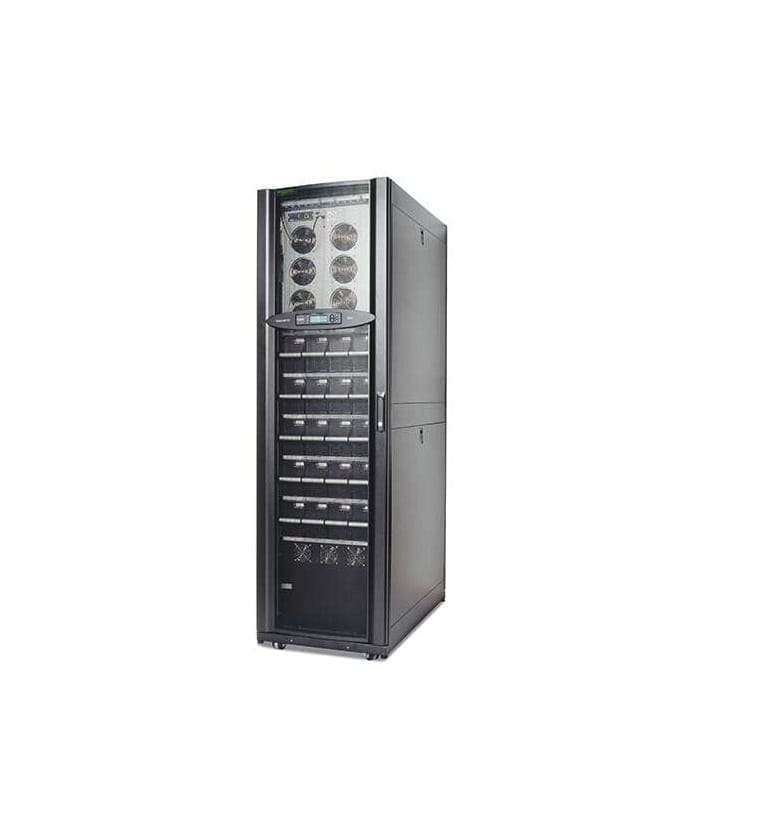

SUVTR30KF3B5S Technical Specifications
APC Smart-UPS VT rack mounted
Output
Max Configurable Power (Watts)
24.0kWatts / 30.0kVA
Output Voltage Note
Configurable for 200 : 208 or 220V 3 Phase nominal output voltage
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
57 – 63 Hz for 60 Hz nominal
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal
Other Output Voltages
220
Load Crest Factor
Unlimited
Topology
Double Conversion Online
Waveform type
Sine wave
Maximum Output Current
92
Bypass
Built-in Maintenance Bypass, Built-in Static Bypass
Input
Input frequency
40 – 70 Hz
Input voltage range for main operations
165 – 240V
Other Input Voltages
220
Input Power Factor at Full Load
0.98
Batteries & Runtime
Battery type
VRLA
Included Battery Modules
3
Typical recharge time
3hour(s)
Replacement Battery
SYBT4
Battery Slots Empty
2
Expected Battery Life (years)
3 – 5
RBC Quantity
3
Battery Volt-Amp-Hour Capacity
7474
Extended Run Options
APC-Smart-UPS-VT-rack-mounted-30kVA-208V-w-3-battery-modules-exp-to-5-w-PDU-startup
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
DB-9 RS-232, SmartSlot
Pre-Installed SmartSlot™ Cards
AP9631
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms : configurable delays
Emergency Power Off (EPO)
Yes
Physical
Maximum Height
78.54inches (1995MM, 199.5CM)
Maximum Width
23.62inches (600MM, 60.0CM)
Maximum Depth
42.32inches (1075MM, 107.5CM)
Net Weight
1444.0lbs. (656.36KG)
Shipping weight
1521.0lbs. (691.36KG)
Shipping Height
78.54inches (1995MM, 199.5CM)
Shipping Width
23.62inches (600MM, 60.0CM)
